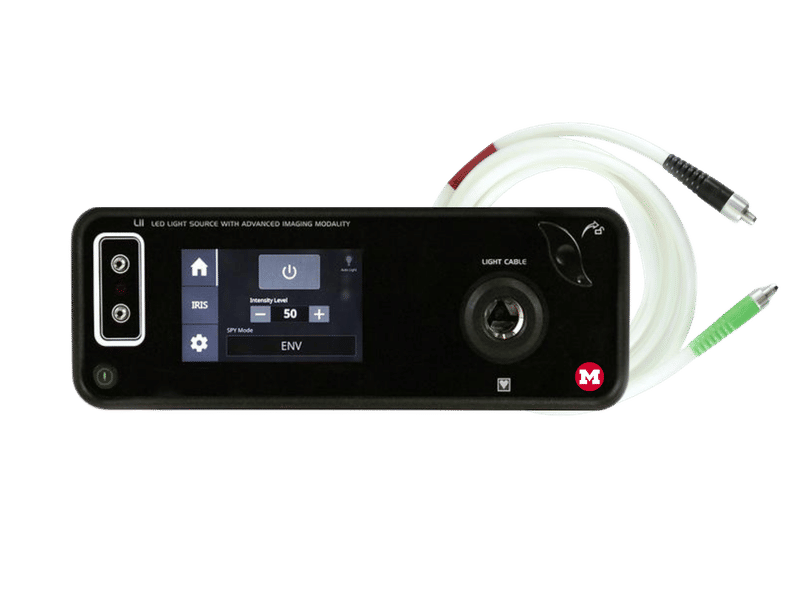

Stryker L11 AIM LED

Illuminate the Unseen. Auto-Light Intelligence meets ICG Fluorescence.

Stryker L11 AIM LED Light Source | M-STORE
4.8/5

AutoLight Tech

Maintains consistent light levels automatically, preventing blinding glare during scope withdrawals and ensuring optimal illumination in deep cavities.

SPY Fluorescence

The engine behind the 1688’s ICG capabilities. Provides the specific Near-Infrared (NIR) excitation wavelengths needed to visualize blood perfusion.

SafeLight Safety

Automatically enters standby mode when the light cable is detached from the scope, preventing accidental drapes fires and patient burns.

LED Longevity

Eliminates the need for bulb replacements. The advanced LED array delivers consistent 6500K daylight brightness for ~30,000 hours.

Configurations

Pricing Starts from ₹5,25,000 (Inclusive of Taxes)

Technical Specifications

Modes Normal, Standby, AutoLight, SafeLight, ICG/AIM
Input Voltage 100 - 240 VAC
Frequency 50 - 60 Hz
Power Consumption 400 W (Max)
Bulb Type High-Performance LED Array
Color Temperature 6500K (Daylight)
Life Expectancy ~30,000 Hours
Dimensions (HxWxD) 10.0 cm x 31.8 cm x 42.7 cm
Weight 7.3 kg (approx)
Stryker L11 AIM Light Source Video

Stryker L11 AIM LED

See SafeLight & AutoLight in Action.

Watch Video

Frequently Asked Questions

Yes, the L11 is fully compatible with standard non-4K & non-ICG systems like the Stryker 1588, 1488, and 1288 HD cameras and ideal eyes or Precision Laparoscopes. It will function as a high-performance LED light source for these units, although SPY fluorescence requires a 1688 AIM 4k camera head and AIM Laparoscope

SafeLight is a safety feature that puts the light source into standby mode when the cable is disconnected from the scope, preventing heat buildup and potential fires in the OR.

The L11 utilizes a durable LED engine rated for approximately 30,000 operational hours, significantly outlasting traditional Xenon bulbs and reducing maintenance costs.

To utilize the SafeLight automatic standby feature, a Stryker SafeLight cable is required. Standard light cables will work for illumination but will not trigger the auto-safety mechanism.

When connected to a 1688 or 1588 camera, the L11 communicates with the CCU to automatically adjust light output based on scene brightness, preventing glare and underexposure.

We provide a comprehensive 12-Month Warranty on all refurbished L11 units. Our STAT Support ensures immediate troubleshooting and replacement if issues arise.

Yes, the L11 is specifically designed with ICG functionality. It can switch between white light and NIR modes instantly when used with a compatible AIM camera head.

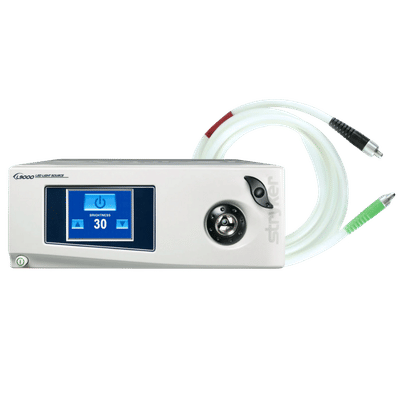

Yes. We offer buyback and trade-in programs for older Stryker light sources (X8000, L9000) when upgrading to the L11 AIM platform.

Starting from
₹5,25,000
