Stryker 1688 AIM 4K

See Beyond the Naked Eye True 4K Clarity with Fluorescence Intelligence.

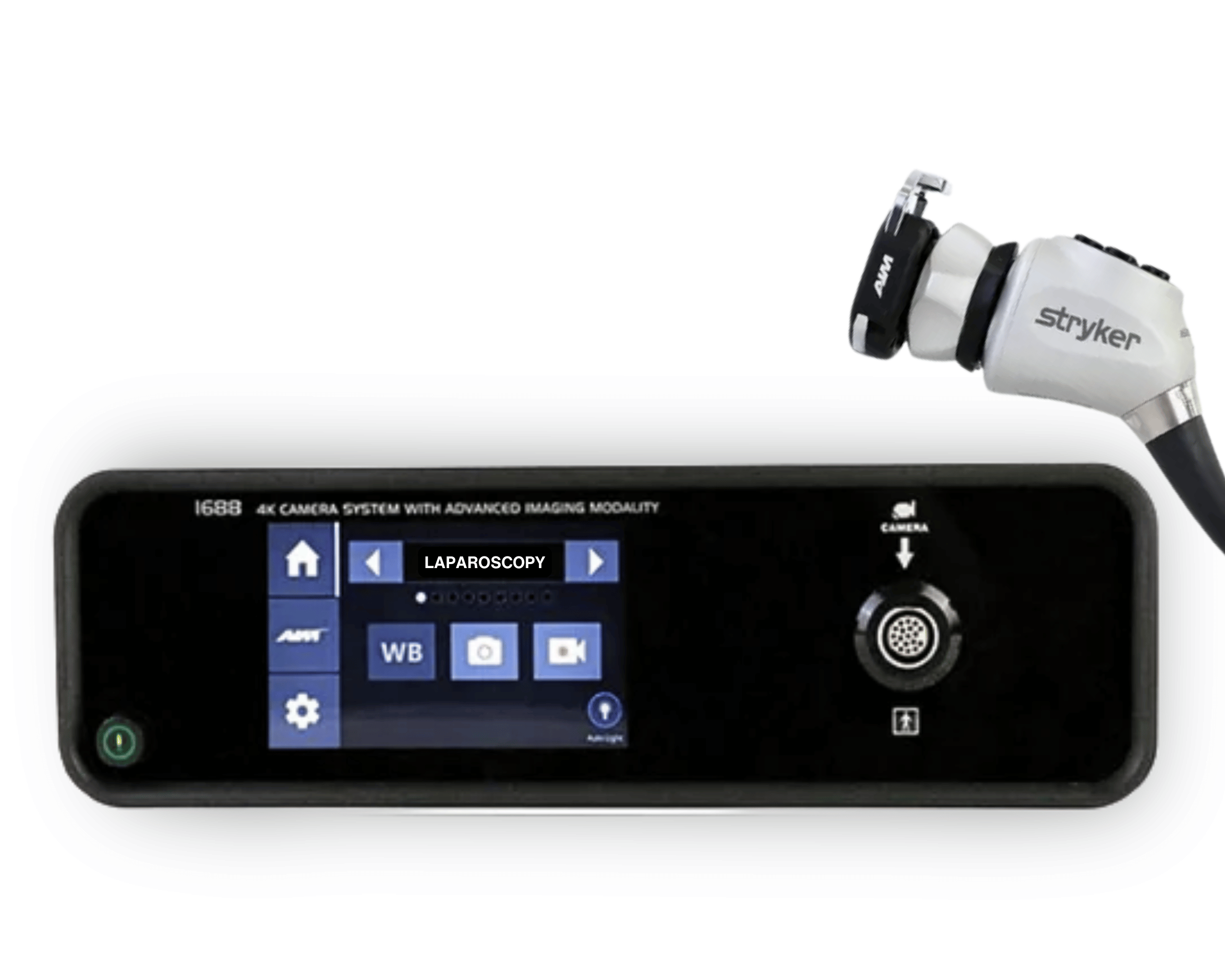

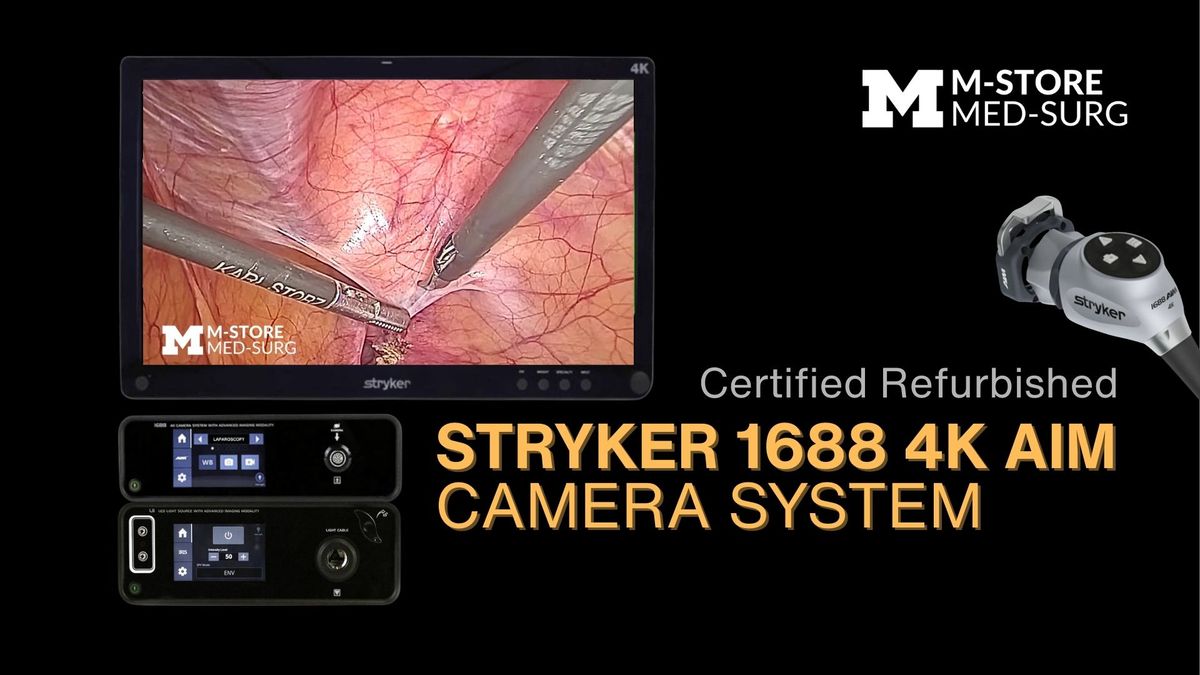

Stryker 1688 4K AIM Camera System Full Set

Native 4K

Brilliant 3840 x 2160 resolution delivered via a 3-Chip CMOS sensor for unparalleled clarity.

SPY Fluorescence

Advanced imaging modalities including SPY Overlay, Contrast, and ENV for real-time blood flow visualization.

AutoLight

Smart illumination that automatically adjusts brightness based on anatomy distance to maintain consistent lighting.

Camera Head

Sensor System
1/2.8" Progressive Scan 3-Chip CMOS
Resolution
Native 4K (3840 x 2160 pixels)
Scanning Frequency
  • Horizontal: 135.00 kHz
  • Vertical: 60.00 Hz
Advanced Modes
SPY Overlay, SPY Contrast, SPY ENV, IRIS (Infrared Illumination)
Sterilization
  • Standard Non-Autoclavable Head
  • Compatible with STERRAD® 100NX/NX
  • Compatible with STERIS V-PRO® Low Temp Systems
  • Ethylene Oxide (EtO)

Camera Control Unit (CCU)

Video Outputs
  • 2x HDMI 2.0 (4K UHD)
  • 1x DisplayPort
Connectivity
Connected OR Hub integration for data/asset management
Interface
Touchscreen LCD with customizable surgeon profiles

Size and Weight

CCU Dimensions
11.3 cm (H) x 33.0 cm (W) x 42.2 cm (D)
CCU Weight
Approx. 5.44 kg (12.0 lbs)
Power Rating
100–240V ~ 50/60Hz, 1.2A (Max)

Equipment Highlights

Experience the full power of the Stryker 1688 AIM 4K ecosystem, available refurbished from M-Store.

Frequently Asked Questions

What surgical specialties is the 1688 optimized for?

The 1688 features 9 dedicated surgical specialty settings, including Laparoscopy, Arthroscopy, Urology, Gynaecology, ENT, and Neurosurgery, optimizing color and light for each anatomy.

What is the difference between SPY Overlay and SPY ENV?

SPY Overlay superimposes a green fluorescence signal onto the white light image. SPY ENV (Enhanced Visualization) turns the image to grayscale to maximize the contrast of the fluorescence signal.

Does the camera head control other devices?

Yes. The four programmable buttons on the camera head can remotely control the L11 Light Source (toggle/standby) and the PneumoClear Insufflator (flow/pressure) directly from the sterile field.

What type of monitor is required?

To resolve the full native 4K signal, a 4K 32" LED Medical Grade Monitor is required. This ensures precise color reproduction and prevents image downscaling common with smaller or non-4K displays.

Is the 1688 compatible with older scopes?

Yes, the 1688 coupler utilizes a standard C-Mount interface, making it compatible with most standard endoscopes, though 4K scopes are recommended for optimal clarity.

Does it require a special light source?

To utilize AutoLight and SPY fluorescence, the Stryker L11 LED Light Source is required. Standard light sources will provide video but lack advanced modality control.

How does M-STORE ensure quality?

Trusted by 1,000+ surgeons, M-STORE systems undergo rigorous inspection by certified biomedical engineers. Every unit is calibrated to OEM specifications and tested for electrical safety.

What warranty does M-STORE provide?

We provide comprehensive warranty protection on all refurbished 1688 systems. Additionally, our STAT Support ensures minimal downtime with rapid troubleshooting and replacement options.

See Beyond the Naked Eye True 4K Clarity with Fluorescence Intelligence.

Stryker 4K surgical display monitor front view showing bezel controls.

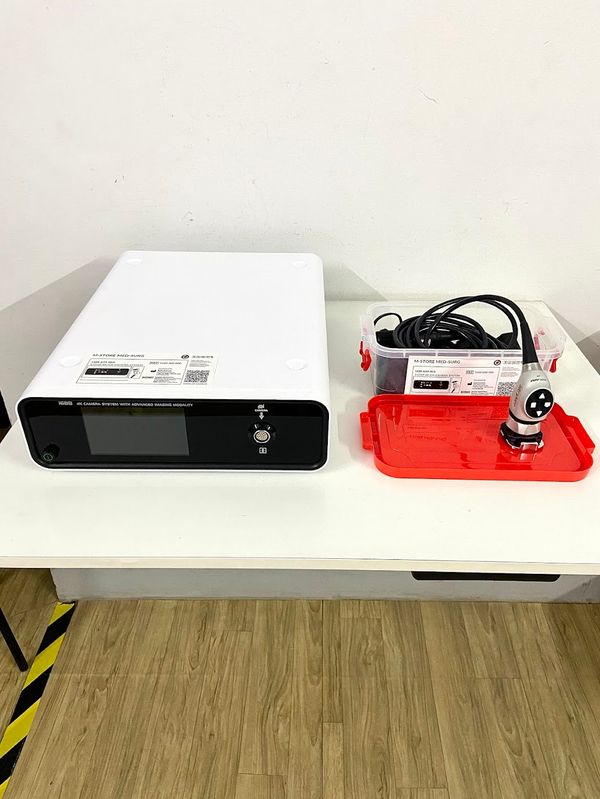

Stryker 1688 AIM 4K Camera Control Unit and camera head in storage container with M-Store Med Surg labelling.

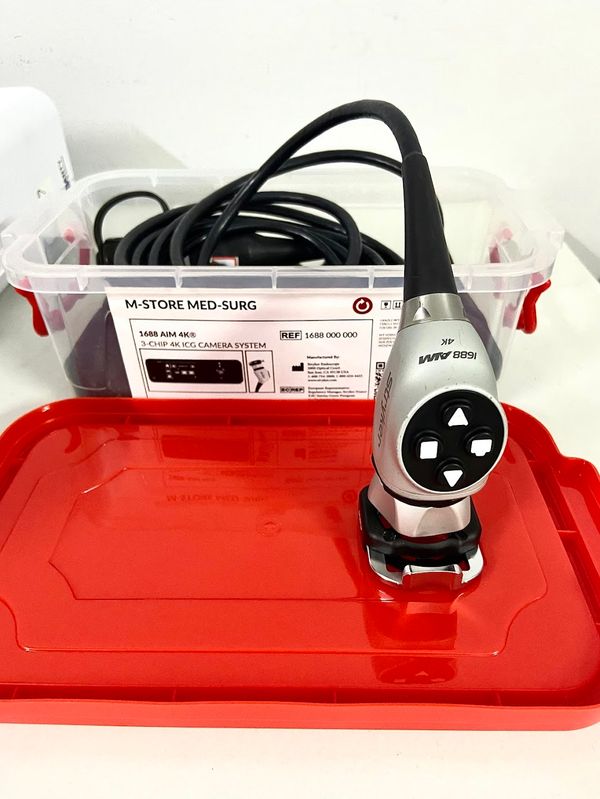

Close-up of Stryker 1688 AIM 4K camera head with ergonomic four-button control.

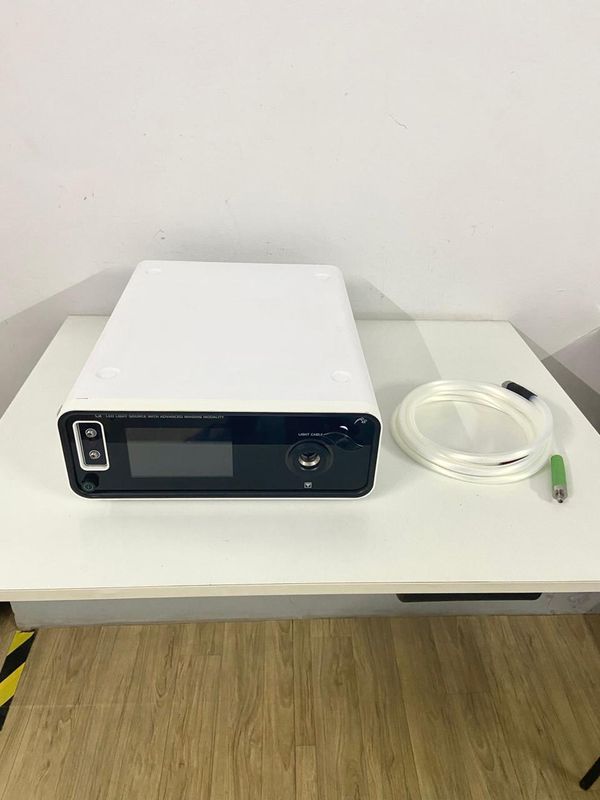

Stryker L11 LED Light Source with Advanced Imaging Modality and fiber optic light cable.

Why Upgrade to the Stryker 1688? (The Surgeon’s Perspective)

The Stryker 1688 AIM (Advanced Imaging Modalities) is not just a camera; it is a patient safety platform. It resolves the two biggest frustrations in modern laparoscopy: poor lighting in deep cavities and invisible critical anatomy.

By upgrading from the 1588 or 1488 series, you gain:

  • True 4K Native Resolution: 4x the pixel density of HD, allowing you to identify microsurgical vessels without digital pixelation.
  • "AutoLight" Technology: No more "white-out" glare or dark posterior cavities. The system automatically adjusts light intensity in real-time as you move the scope.
  • Fluorescence (AIM) Overlay Mode: Visualize blood perfusion (ICG) and biliary anatomy in real-time. See what was previously invisible.

Key Technical Specifications

  • Resolution: 3840 x 2160 (Native 4K). Delivers 4x the pixel density of standard HD, providing crystal-clear visualization of tissue texture and fine mucosal layers.
  • Color Reproduction: 10-Bit Color Depth. Allows for a wider color gamut, helping surgeons distinguish between subtle shades of red for precise bleed detection and tissue differentiation.
  • Sensor Technology: 3-Chip CMOS 4K Sensors. These advanced sensors offer superior light sensitivity and significantly reduced image noise compared to older CCD technology.
  • AIM Capabilities (Fluorescence): Fully equipped with SPY Overlay, SPY Contrast, and SPY ENV modes. This allows for instant toggling between White Light and Near-Infrared Fluorescence to visualize blood perfusion in real-time.
  • IRIS Technology: Built-in Ureteral Visualization support. When paired with the L11 light source and lighted stents, this feature helps identify ureters to reduce the risk of iatrogenic injury during complex Gyn or Colorectal procedures.
  • Connectivity: Designed for seamless integration with the Stryker Connected OR Hub. Supports direct 4K video recording and instant image capture to hospital PACS systems.
  • Aspect Ratio: 16:9 Native. Matches modern 4K surgical monitors perfectly for a full-screen, distortion-free field of view.
  • Sterilization: Autoclavable camera head with a durable, ergonomic design meant to withstand repeated sterilization cycles without performance degradation.

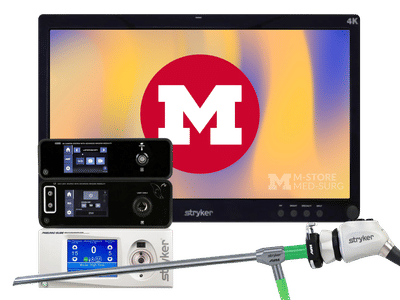

What is Included in the Full Tower Set?

At M-Store Med Surg, we don't sell "parts"; we sell ready-to-use solutions. A standard 1688 Refurbished Kit includes:

  1. 1688 AIM 4K Camera Control Unit (CCU): Flagship 4K ICG Advanced Camera Processor.
  2. 1688 AIM 4K Camera Head: Lightweight, ergonomic design with programmable buttons.

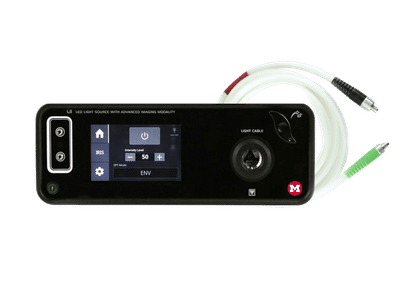

  3. L11 AIM LED Light Source: The only light source that communicates with the camera to prevent burns (AutoLight).

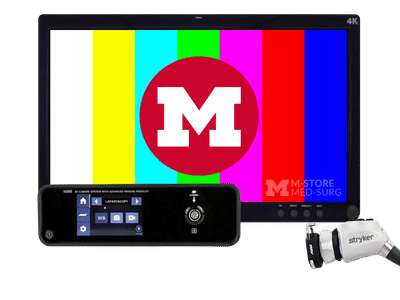

  4. Stryker 32" 4K Surgical Display: Medical-grade monitor with zero latency, high brightness & 178 degrees field of view.
  5. Fiber Optic Light Cable: High-transmission IR cable designed for 4K light output.

M-Store Med Surg "Certified Refurbished" Promise

Buying a 1688 system is a significant investment. We remove the risk.

  • The "Bench Test": Every 1688 head is tested on a color calibration chart to ensure 0 dead pixels and perfect red-green-blue alignment.
  • Cable Integrity: We replace the camera cable if there is any sign of fraying or hardening.
  • Video Proof: We will WhatsApp you a timestamped video of your specific unit functioning before we pack it.
  • Buyback Guarantee: Upgrading from a 1288/1488/1588? We offer fair trade-in value for your old tower.

Frequently Asked Questions

Q: Can I use my existing Stryker X8000 Xenon light source with the 1688 Camera?

A: While it may physically connect, we do not recommend it. To get true 4K clarity and use the AutoLight features, you must use the L11 LED Light Source. Xenon bulbs cannot pulse rapidly enough for the 1688’s sensor timing.

Q: Does this system support ICG (Indocyanine Green) imaging?

A: Yes! The "AIM" in 1688 stands for Advanced Imaging Modalities. It is fully equipped for SPY Fluorescence imaging, making it the gold standard for colorectal and hepatobiliary surgeries.

Q: How does M-Store ship this sensitive equipment?

A: We use triple-layer foam crate packaging. The camera head is packed in a static-shielded custom box. We ship via Blue Dart with full insurance coverage.
