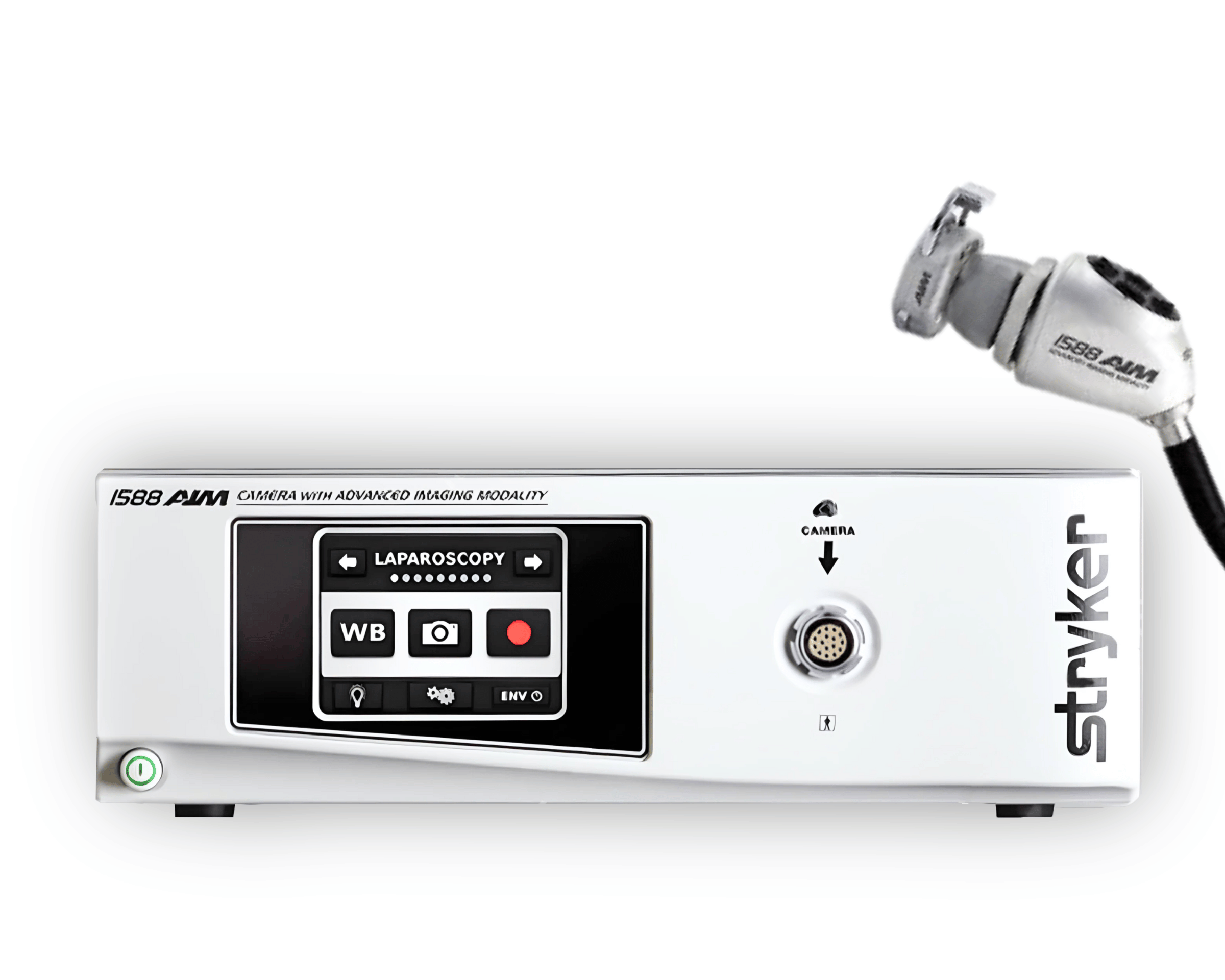

Stryker 1588 AIM HD

The primary variance centers on the activation of software-driven Advanced Imaging Modalities (AIM). While both share a 1080p core, the 1488 relies strictly on white-light optical arrays. The 1588 integrates near-infrared (NIR) architecture to drive specialized visualization profiles like ENV and IRIS for Indocyanine Green (ICG) fluorescence mapping.

The fundamental difference is spatial resolution. The 1588 utilizes a native Full HD (1920 x 1080p) 3-CMOS array. The 1688 provides native 4K (3840 x 2160p) output with 10-bit color tracking. Both support near-infrared fluorescence, but the 1688 upgrades the auxiliary platform to the L11 light source and PneumoClear insufflation console.

1688 4K vs 1588 AIM Side-by-Side Comparison

Watch the real-time clinical vision comparison layout.

Play Comparison

It depends heavily on the specific camera head configuration. The standard Karl Storz IMAGE1 S with a TH100 or H3-Z head configuration does not support ICG fluorescence imaging. To achieve ICG compatibility on the Storz platform, you must deploy the specialized H3-Z FL (or FI) or the Rubina series camera heads. Sourcing a Storz Rubina or FL/FI setup usually costs significantly more than a premium refurbished Stryker 1588 tower.

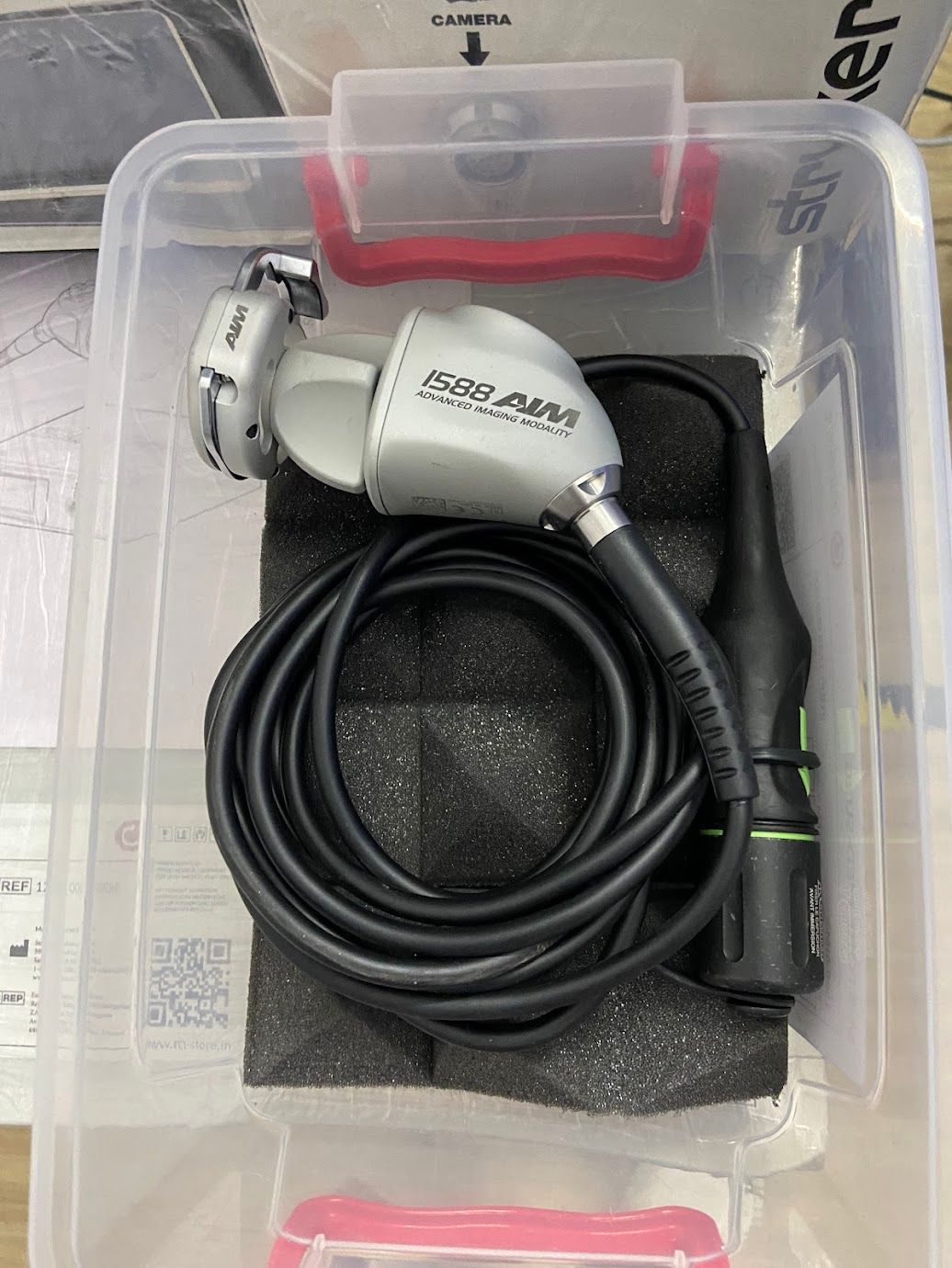

Single-chip cameras use an interpolating Bayer filter pattern that can introduce color aliasing. The Stryker 1588 camera head utilizes a precision trichroic beam-splitting prism block. This separates incoming photons into dedicated Red, Green, and Blue sensory channels, capturing true-to-life tissue vascularity with zero spatial artifacting.

The platform integrates five discrete algorithmic viewing modes: ENV (Endoscopic Near-Infrared Visualization for perfusion mapping), IRIS (InfraRed Illumination System for tracking ureters), DRE (Dynamic Range Enhancement for illuminating dark pockets), Clarity (real-time video enhancement device), and Desaturation (modulating intense red margins).

Stryker’s proprietary DRE software algorithm increases localized luminance values within dark or posterior anatomical compartments by up to 150%. It dynamically equalizes dark pixels while tracking bright foreground borders, preventing clipping and overexposure during deep pelvic or retroperitoneal dissections.

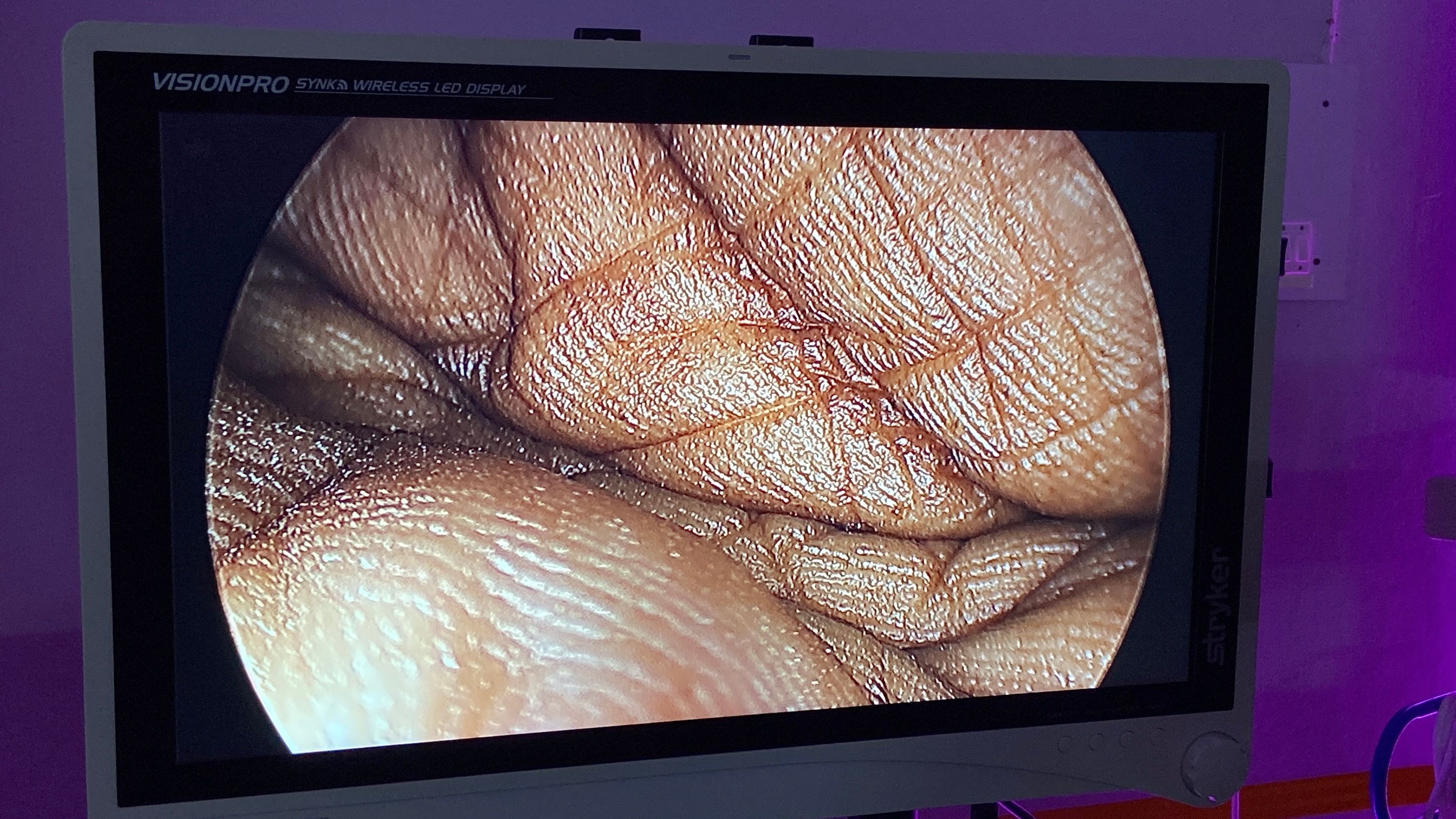

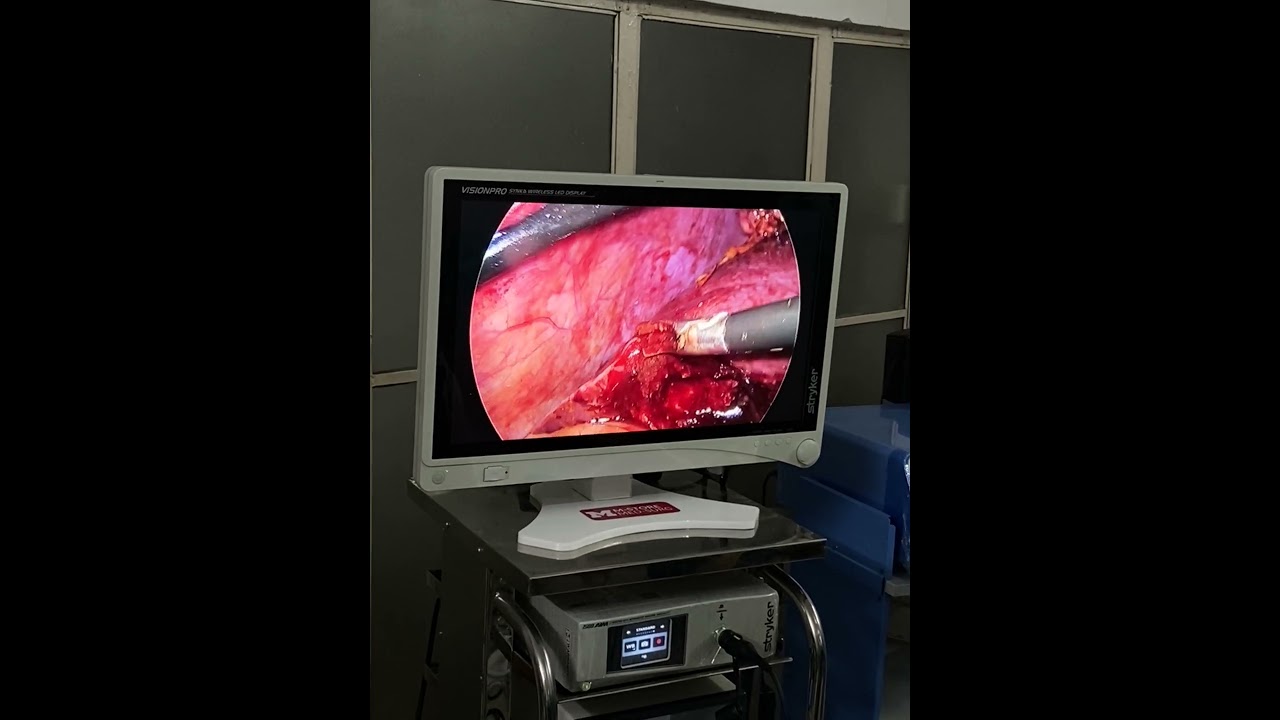

Clarity Mode utilizes real-time spatial processing algorithms that analyze the pixel matrix frame-by-frame. It improves image quality, contrast, and fine lines by up to 48%, allowing the surgical team to see clearly through visual impairments like surgical smoke, fluid turbulence, and floating debris.

They reconfigure the sensor's internal parameters—including gain curves, edge enhancement filters, white balance baselines, and light metering windows. This optimizes the video path for distinct procedures like Laparoscopy, Arthroscopy, Urology, GYN, ENT, and GI endo.

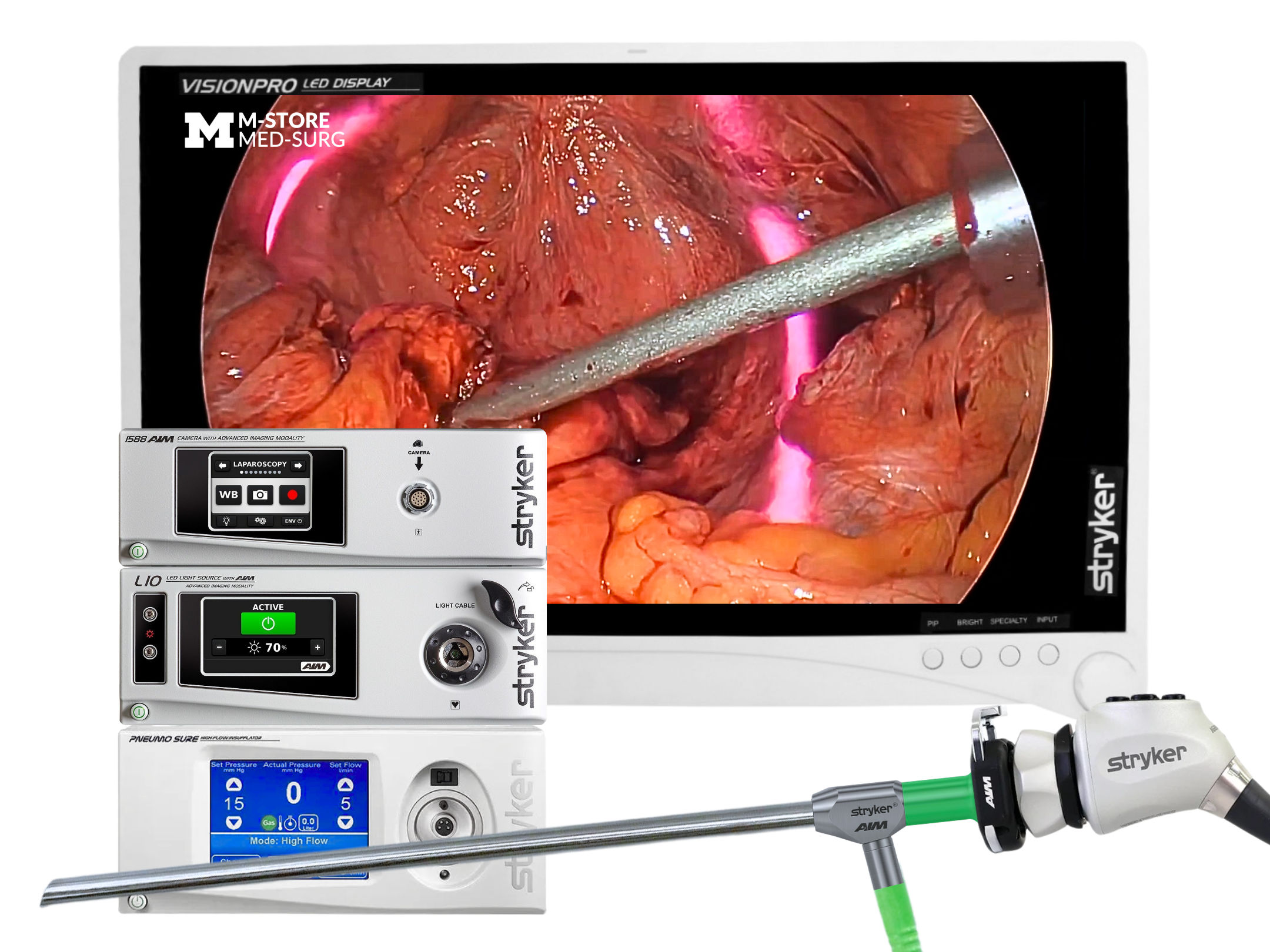

Real-time oncological assessment relies on tracking tumor vascularity margins and sentinel lymph node mapping. ENV mode highlights invisible 830nm near-infrared wavelengths that interact with injected Indocyanine Green (ICG) dye. This highlights tissue perfusion planes, helping to ensure clean oncological resections.

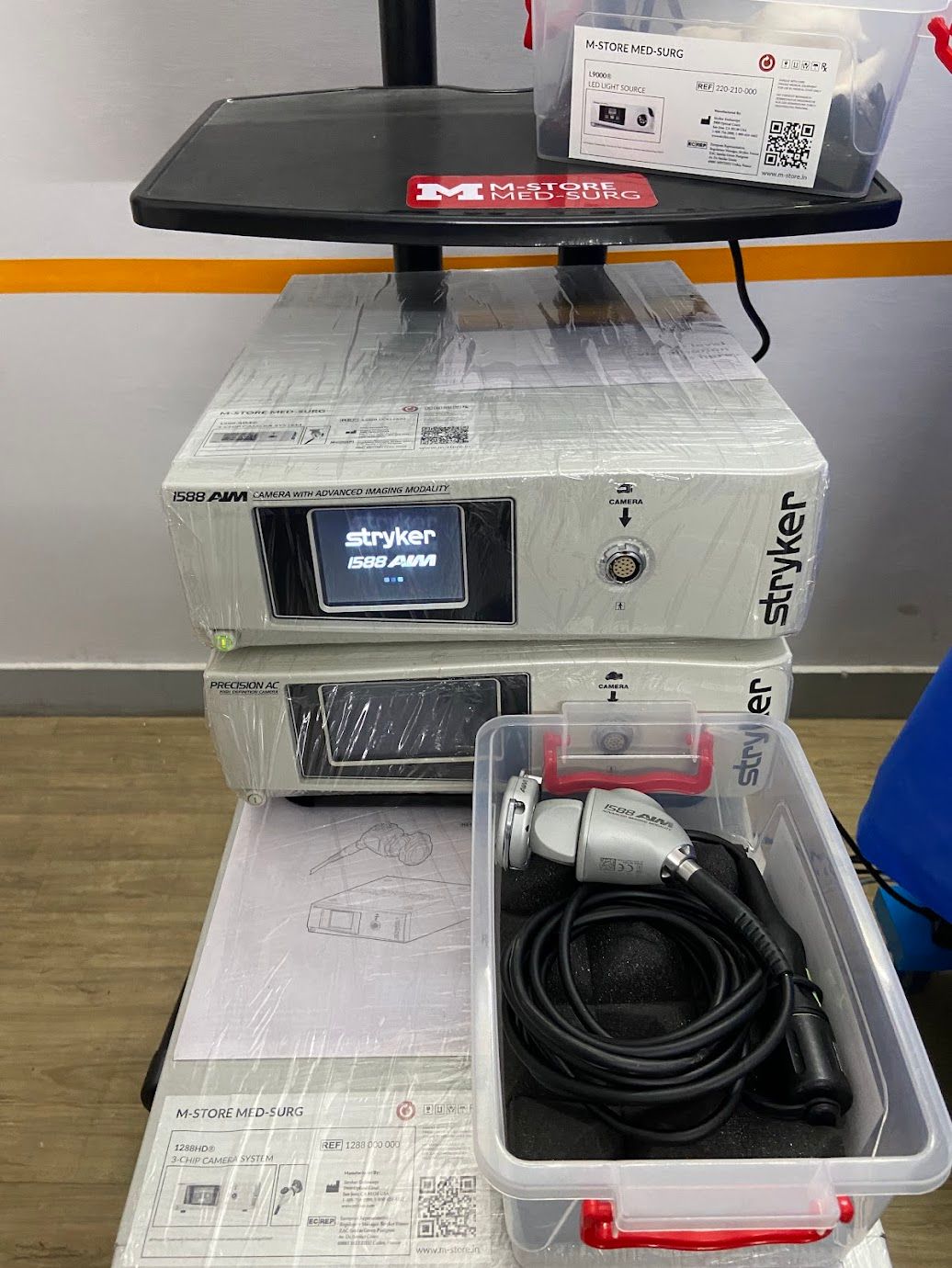

The console houses an adaptive processing matrix that can accept diverse camera head form factors—including Standard C-Mount, Inline, Pendulum, and Integrated Zoom variations. This enables a single tower console to transition seamlessly from orthopedic arthroscopy to micro-ENT or general laparoscopy.

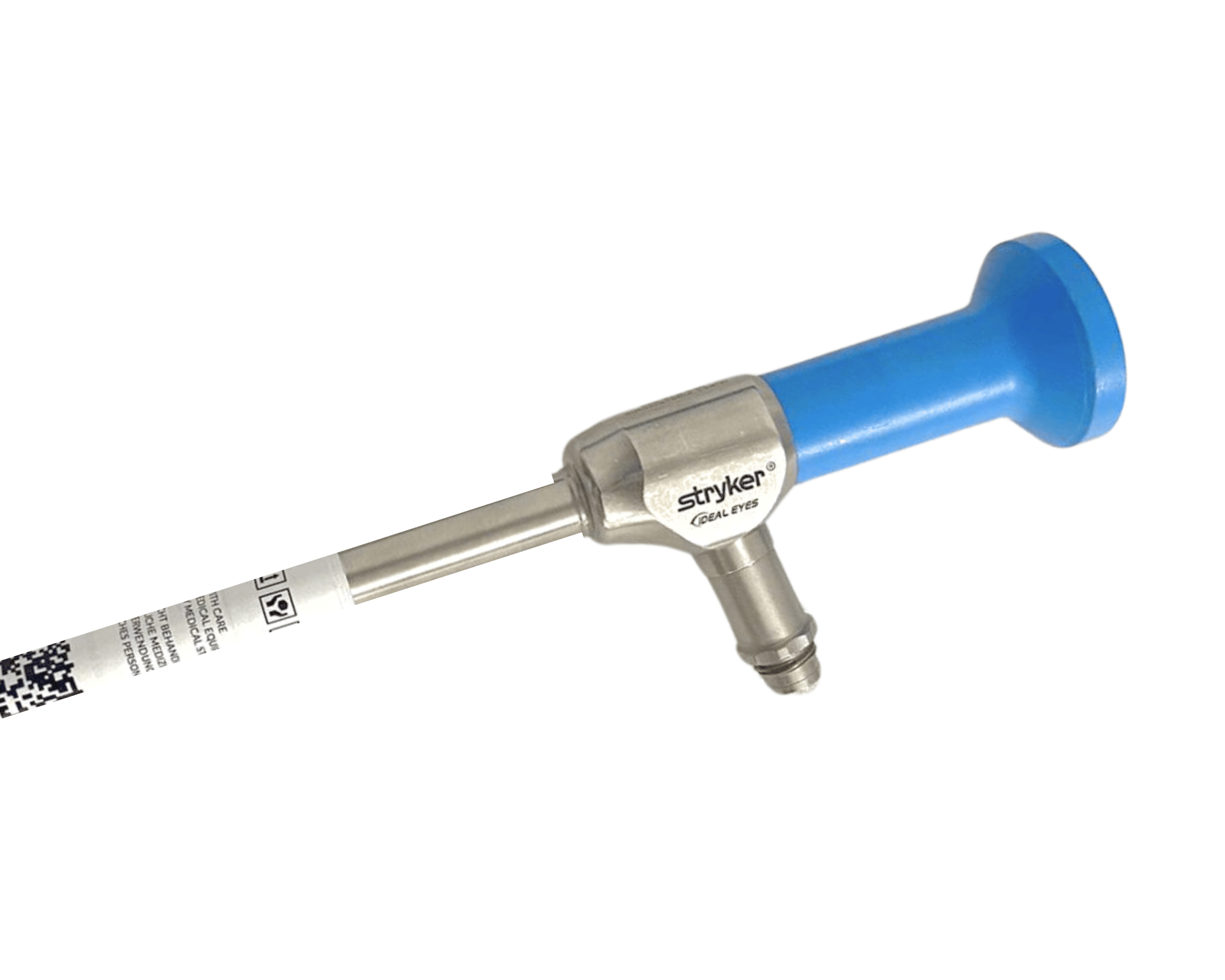

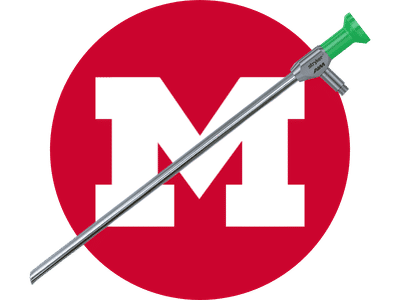

Yes. The 1588 camera head utilizes a standard C-Mount mechanical interface that securely attaches to standard rigid endoscopes. However, to utilize near-infrared modes like ENV, you must pair the head with an AIM series telescope featuring high-bandpass 830nm anti-reflective coatings.

For community hospitals and mid-tier clinical centers focused on standard rigid laparoscopy, the 1588 offers an ideal balance of cost and capability. It delivers elite 1080p native resolution and full ICG functionality at a fraction of the capital asset expenditure required for a new 4K infrastructure.

Because the 1588 console adapts across multiple specialties via software presets, hospitals can standardize on a single tower model. This significantly reduces the overhead costs of maintaining separate, dedicated imaging systems for distinct surgical departments.

Every system is delivered with a comprehensive 1-Year Warranty that matches original equipment manufacturer safety variables. This is backed by an efficient component replacement infrastructure that protects your hospital against unexpected service fees.

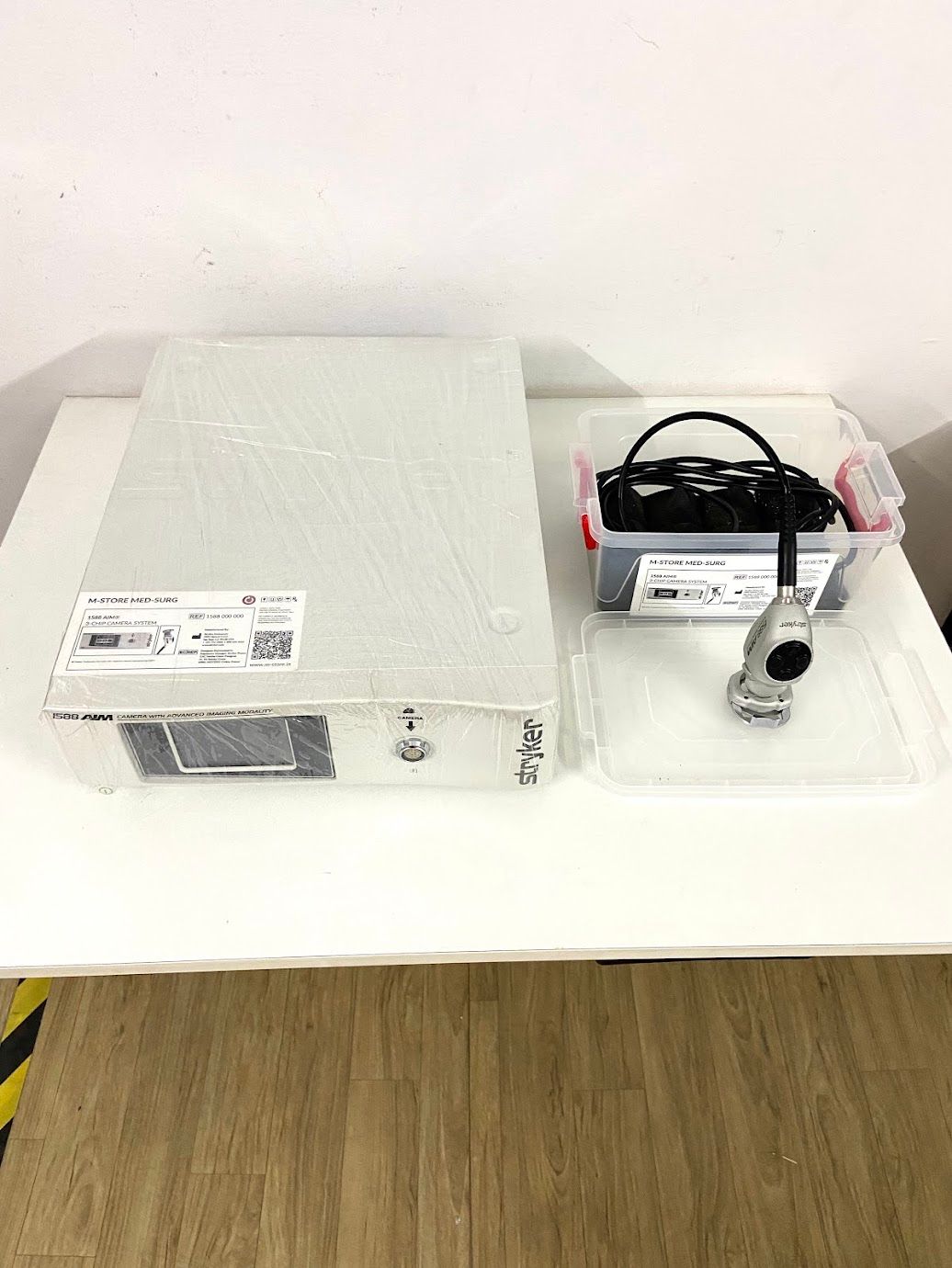

Each 1588 unit undergoes rigorous multipoint electronic alignment. Biomedical engineers inspect the power distribution layout, confirm uncompressed signal purity via specialized test patterns on digital ports, verify color channels, and update internal software profiles to factory spec.

M-Store MedSurg provides rapid STAT Support troubleshooting. If an electronic component fails or falls out of calibration range during normal operation, we quickly dispatch a replacement unit or sub-assembly to keep your operating room downtime to an absolute minimum.

Staff highly praise the system's efficiency. Incoming surgical teams can use the intuitive touchscreen interface to load their exact saved parameter profiles instantly. This automatically configures light values, video gain, and specialized imaging presets, significantly speeding up pre-op setup times.

The ergonomic single-handed focus ring configuration allows surgeons to easily maintain sharp focus throughout a case. The secure internal mechanical clamps prevent focus drift, even during aggressive torque positioning during deep abdominal procedures.
