Stryker L9000 LED

Q: Can I control it from the camera head?

Yes. When connected to a Stryker 1288 HD or 1488 HD Camera Control Unit, you can toggle the light source between Standby and Run mode directly from the camera buttons.

The LED Standard. Efficient. Cool. Reliable.

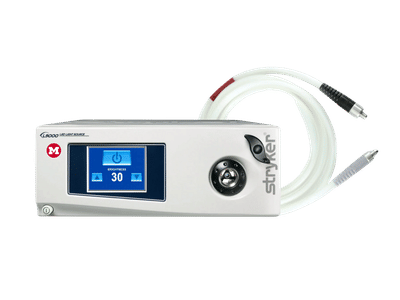

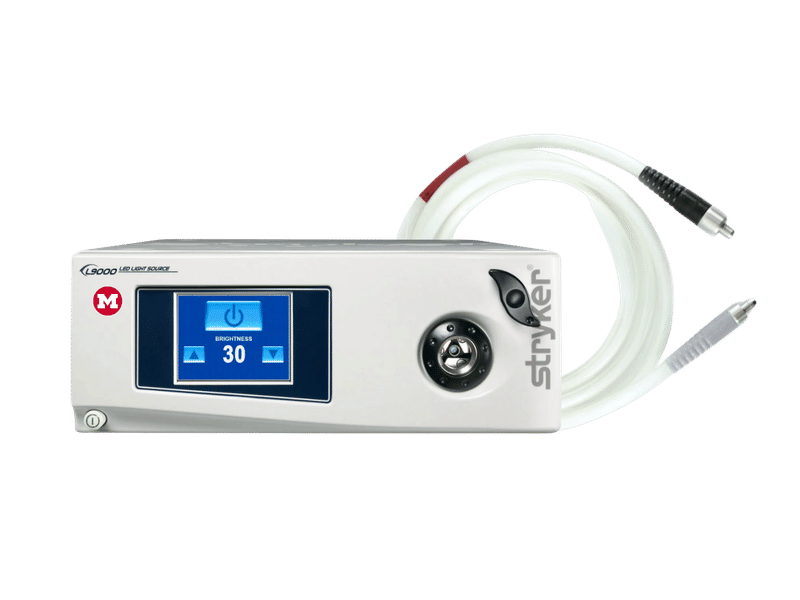

Stryker L9000 LED Light Source | M-STORE

4.8/5

LED Technology

30,000+ hours of service-free life. Eliminates the need for frequent bulb replacements found in older Xenon systems.

High Intensity

Delivers powerful, consistent 6500K daylight-quality white light for brilliant illumination in deep cavities.

Durable & Sturdy

Built for the demanding OR environment. The solid-state LED engine withstands vibrations and impacts better than fragile bulbs.

Easy to Set Up

Features an intuitive touchscreen interface for effortless control and rapid configuration by surgical staff.

Technical Specifications

Reference Number 220-210-000

Technology LED (Light Emitting Diode)

Input Voltage 100 - 240 VAC

Frequency 50 - 60 Hz

Power Consumption 400 W

Color Temperature 6500K (Daylight)

Life Expectancy ~30,000+ Hours

Special Features SafeLight (Standby), ESST (Scope Sensing)

Dimensions (HxWxD) 12.1 cm x 31.8 cm x 42.7 cm

Weight 7.3 kg

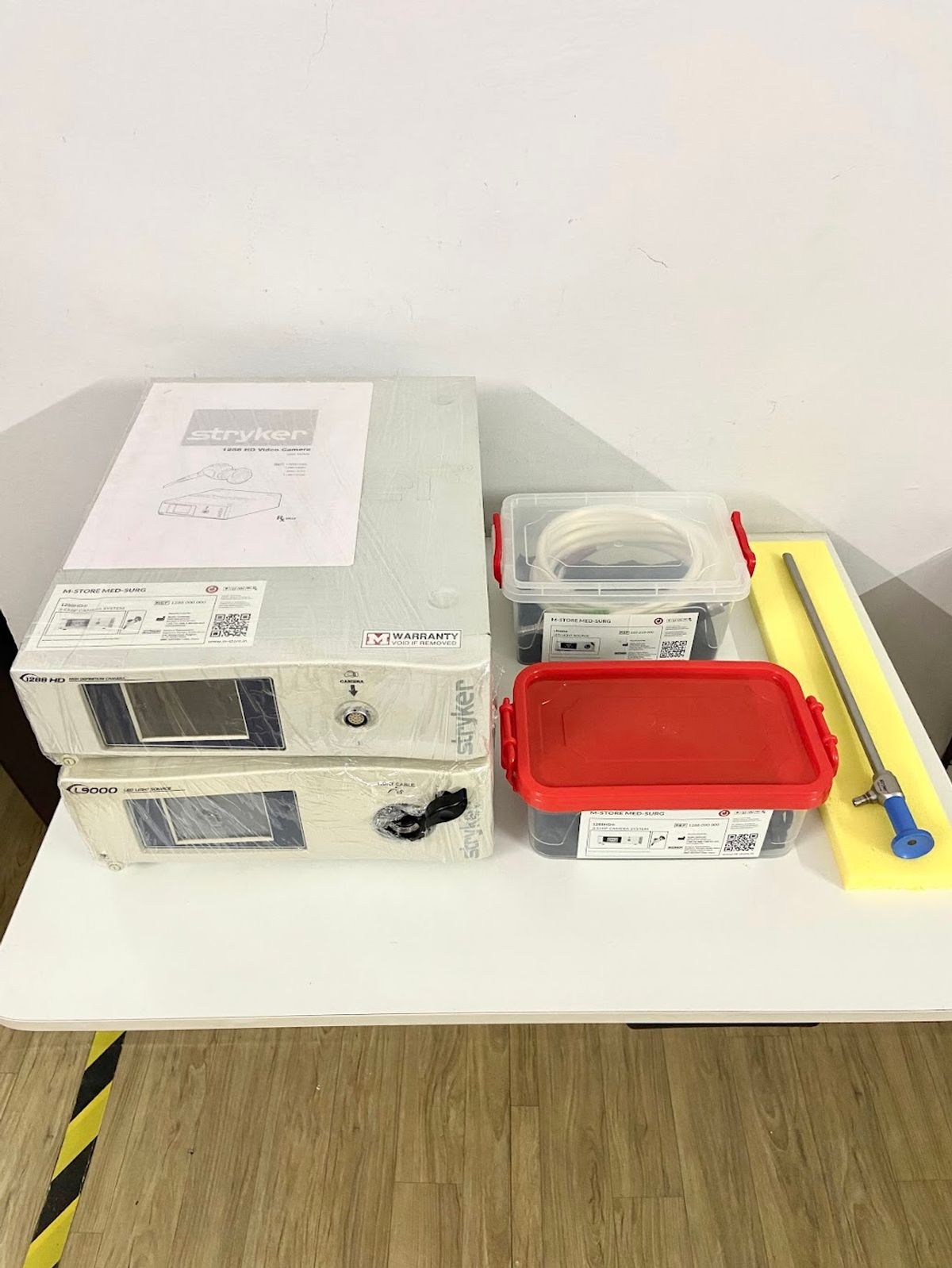

Stryker L9000 & 1288

See the LED brightness in action.

Watch Video

Frequently Asked Questions

Does the L9000 have Safelight Technology?

Yes, the L9000 is equipped with SafeLight technology. When used with a compatible Safelight cable, the unit detects if the cable is detached from the scope and automatically enters standby mode to prevent burns.

Does it work with older X8000 cables?

Yes, standard Stryker light cables from the X8000 era are compatible with the L9000 port. However, to utilize the automatic SafeLight standby feature, a specific SafeLight cable is required.

How does it compare to the L11?

Both are LED light sources with 30,000+ hour lifespans. The L9000 is the standard LED model optimized for 1288/1488 cameras. The L11 is the advanced model designed for the 1688 AIM system with specific support for ICG/SPY fluorescence, which the L9000 lacks.

Can I control it from the camera head?

Absolutely. When connected to a Stryker 1288 HD or 1488 HD Camera Control Unit, you can toggle the light source between Standby and Run mode directly from the camera buttons.

What is the warranty period?

M-Store MedSurg provides a comprehensive 12-Month Warranty on all refurbished L9000 units, covering parts and labor.
