3-Chip HD Clarity
Features 1920x1080p native resolution. The 3-Chip design ensures superior color fidelity and edge-to-edge sharpness compared to standard single-chip sensors.

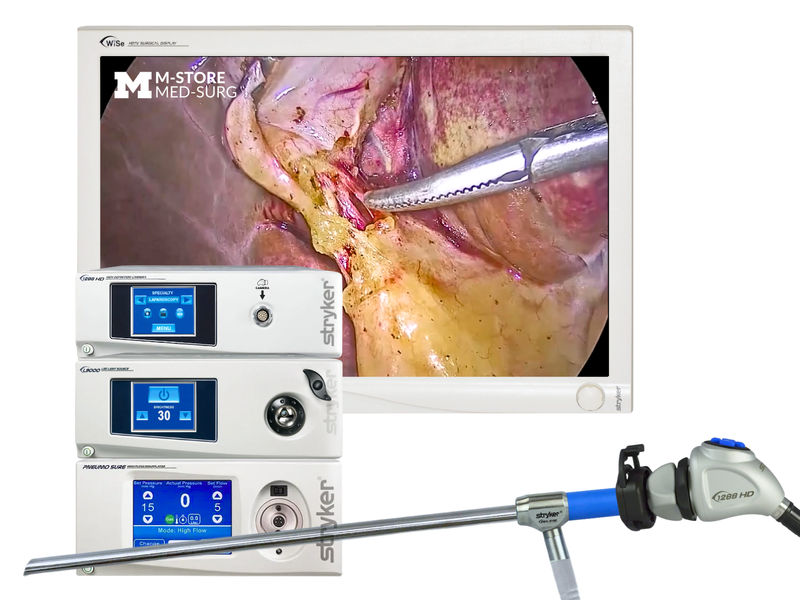

Stryker 1288 HD
The Gold Standard in HD Imaging at an Unbeatable Value.
Digital Zoom & Enhance
Enhance visualization instantly. The camera head features 4 programmable buttons to control digital zoom and gain settings without leaving the sterile field.
Stable & Reliable
Known as the industry standard, the 1288 platform offers time-tested durability, minimizing downtime and maintenance costs for high-volume ORs.
Versatile Specialties
Optimized for 9 surgical specialties including Laparoscopy, Arthroscopy, Urology, and ENT, with dedicated color profiles for each tissue type.
1288 Camera Head & CCU
Reference Number
- CCU: 1288-010-000
- Camera Head: 1288-010-122
Resolution
1920 x 1080 (High Definition)
Sensor
3-Chip Progressive Scan Technology
Programmable Buttons
4 Buttons (Zoom, Light, White Balance, Capture)
Specialty Settings
9 Profiles (Lap, Arthro, Uro, Gyn, ENT, Neuro, etc.)
Video Outputs
- 2x DVI (Digital Video Interface)
- 1x SVGA
- 1x Composite / S-Video
CCU Dimensions
31.8cm (W) x 10.9cm (H) x 42.7cm (D)
CCU Weight
6.0 kg (13.0 lbs)

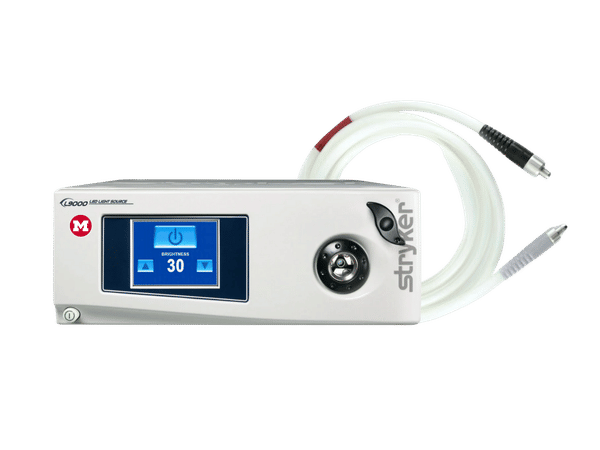

L9000 LED Light Source
Reference Number
0220-210-000
Bulb Life
30,000+ Hours (Long-life LED)
Interface
Touchscreen LCD with User Profiles
Light Quality
Natural White, Flicker-Free Illumination
Thermal
Improved Heat Management (Cooler than Xenon)
Dimensions
31.8cm (W) x 12.1cm (H) x 42.7cm (D)
Weight
7.3 kg (16.0 lbs)
Wise 26" Medical Monitor
Reference Number
240-030-970
Display Size
26-inch Widescreen (Medical Grade)
Resolution
Full HD 1920 x 1080
Inputs
DVI, VGA, S-Video, Component, HD-SDI
Dimensions
64.3cm (W) x 39.6cm (H) x 8.7cm (D)
Weight
7.7 kg
See it in Action
Equipment Highlights
Experience the reliability of the Stryker 1288 HD ecosystem, expertly refurbished by M-Store.
M-Store MedSurg

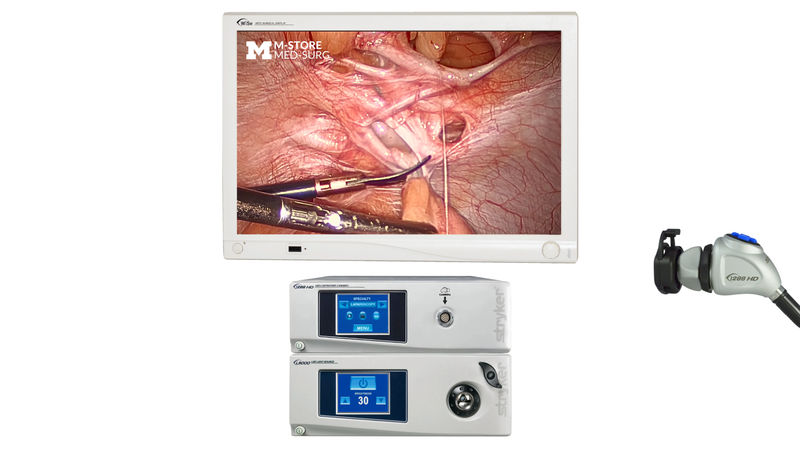

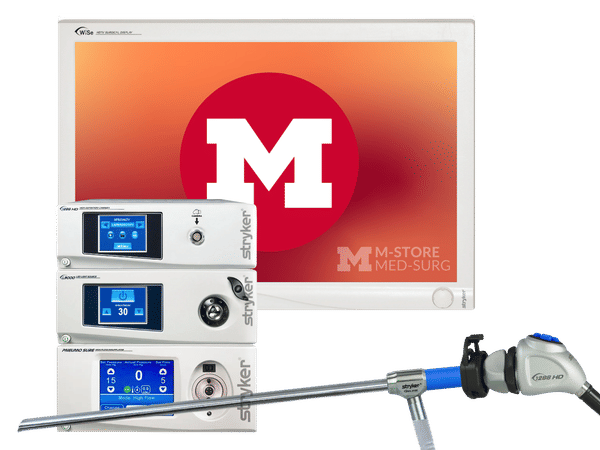

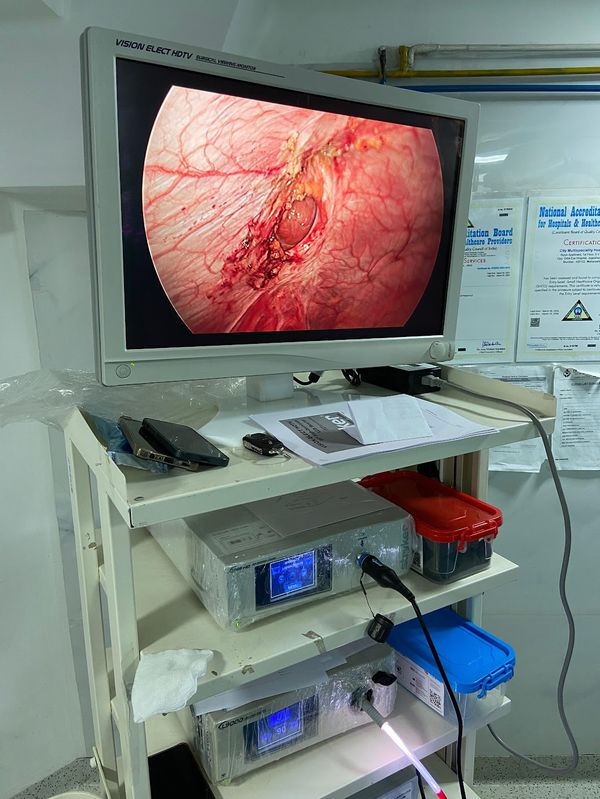

Stryker 1288 Full Set
M-Store MedSurg

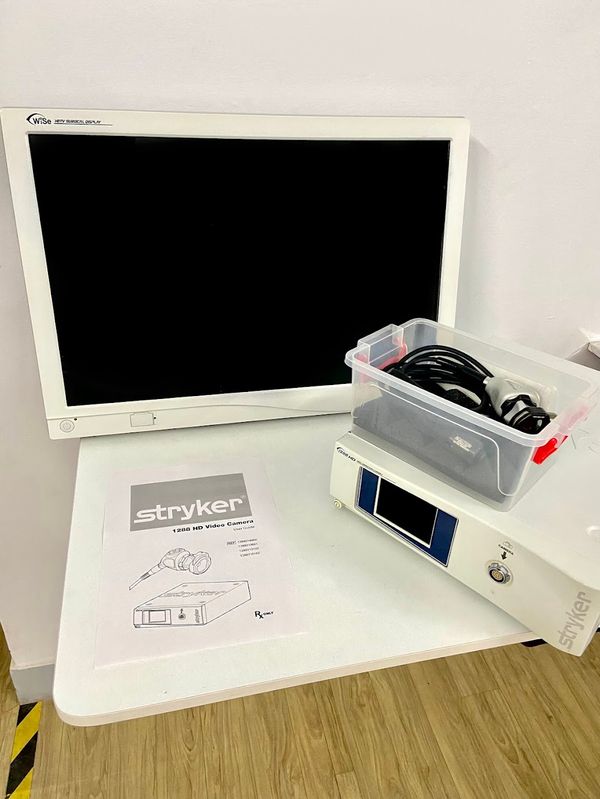

Wise 26" HD Monitor
M-Store MedSurg

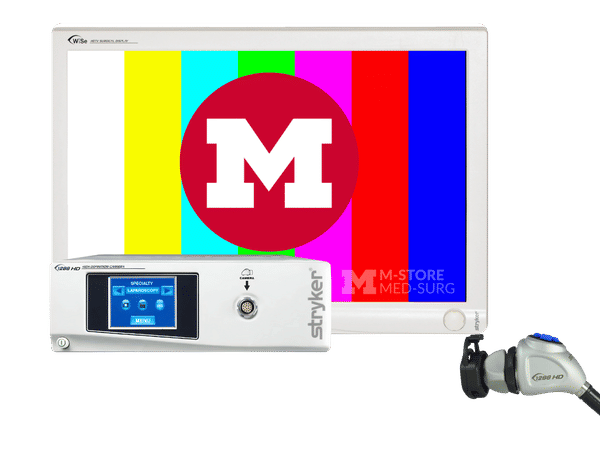

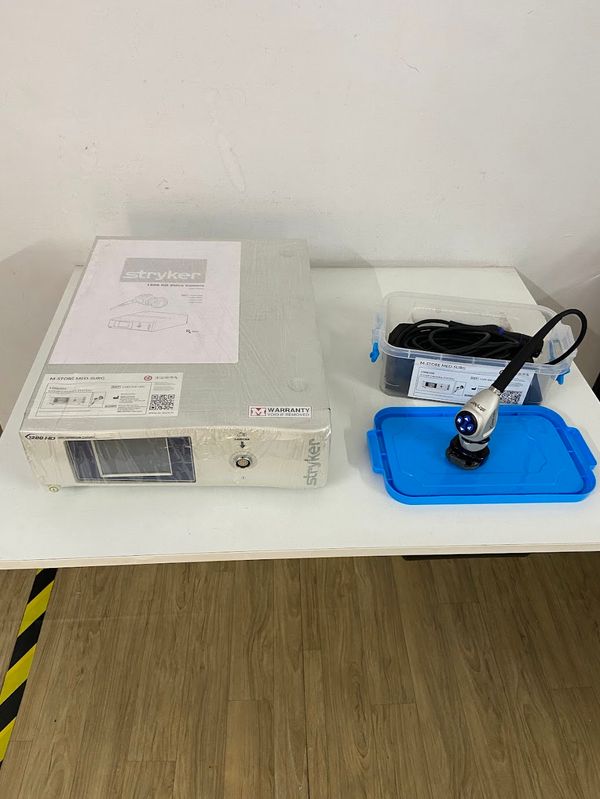

1288 Camera & CCU
M-Store MedSurg

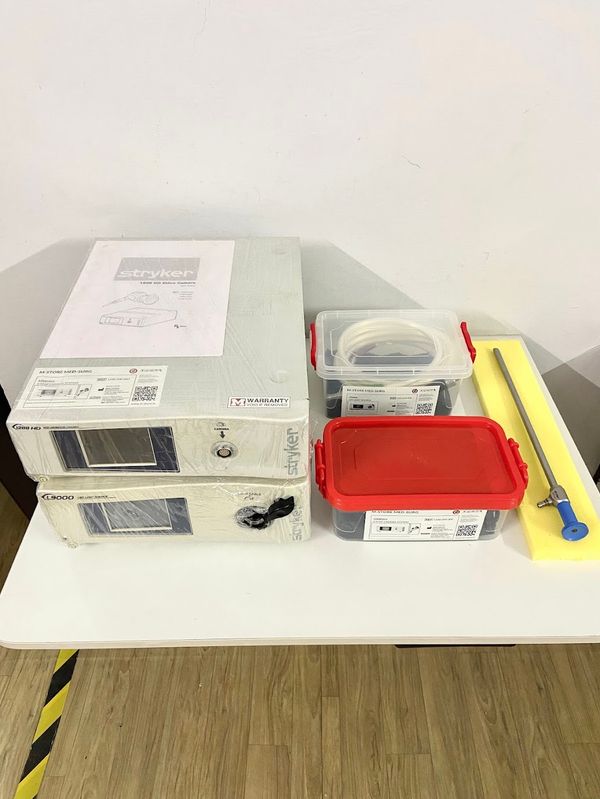

L9000 LED Source
Frequently Asked Questions
What is the resolution of the Stryker 1288 HD system?
The Stryker 1288 HD camera system delivers True High Definition 1920 x 1080p resolution, providing crystal clear images for minimally invasive surgery.
Does the L9000 Light Source require bulb changes?
No. The L9000 uses LED technology which eliminates the need for Xenon bulb replacements, significantly reducing long-term ownership costs and environmental waste.
What is the difference between Stryker 1288, 1488, and 1588?
All three systems provide high-definition imaging. The 1288 utilizes a robust 3-Chip CCD sensor which is the industry standard for color reproduction. The 1488 uses CMOS sensors for increased light sensitivity, while the 1588 adds ICG fluorescence modalities.
Is the Stryker 1288 compatible with older scopes?
Yes, the 1288 camera head uses a standard C-mount coupler, making it compatible with the vast majority of rigid and flexible endoscopes from Stryker and other major brands.
What makes the Wise 26-inch monitor special?
The Wise 26" monitor is a Medical Grade HD display with a high brightness panel and built-in wireless receivers (WiSe technology), allowing for cable-free video transmission when paired with a transmitter.
How many programmable buttons are on the camera head?
The 1288 camera head features four fully programmable buttons, allowing the surgeon to control light intensity, white balance, zoom, and capture directly from the sterile field.
Can I use this system for Arthroscopy and Laparoscopy?
Yes. The 1288 CCU features 9 dedicated specialty settings, including optimized profiles for Laparoscopy, Arthroscopy, Urology, ENT, and Gynecology.
What is the benefit of the 'Digital Zoom' feature?
The 1288 includes a digital zoom function that allows surgeons to magnify the image without moving the scope closer to the anatomy, preserving the sterile field of view.
How does M-Store MedSurg certify its refurbished equipment?
Every Stryker 1288 system undergoes a 50-point inspection by certified biomedical engineers. We test color accuracy, cable integrity, and electrical safety to ensure it meets original OEM performance standards.
Does the system come with a warranty?
Yes, M-Store MedSurg provides a comprehensive warranty on the Camera Head, CCU, and Light Source, along with lifetime tele-support for troubleshooting.
