Karl Storz Image 1 S Rubina

Modular 4K ICG Platform. Future-Proof. Unrivaled Clarity.

Karl Storz Image 1 S Rubina 4K ICG Endoscopy System Full Set Refurbished - M-Store

Modular Platform

One brain (TC200) controls everything. Seamlessly switch between 3-Chip HD, 4K UHD, ICG, and 3D visualization by simply changing the Link Module.

ICG Overlay Mode

Rubina OPAL1 technology overlays NIR/ICG fluorescence onto the white light image, allowing real-time assessment of perfusion and critical structures.

SPIES Enhancement

Includes proprietary S-Technologies: CLARA (brightness), CHROMA (contrast), and SPECTRA (color shift) for superior tissue differentiation.

Best for Superspecialty

From complex Onco-surgery to delicate Neuro procedures, the Rubina system adapts to the specific needs of every surgical discipline.

Technical Specifications

Control Units
Platform Overview The Image 1 S platform uses a modular design consisting of a primary "Connect" module (The Brain) and various "Link" modules.
Connect Module (Brain) TC200: Standard SCB Control, S-Technologies
TC201: Connect II, KS HIVE Ready
Documentation Internal USB module for Still Image Capture and Full HD/4K Video Recording via front panel.
Link Modules TC300: For 3-Chip HD (TH100/102)
TC304: For 4K & Rubina (TH120/121)
Video Outputs 2x DisplayPort 1.2, 1x 12G-SDI, 1x DVI-D
Camera Heads
TH121 (Rubina 4K) Sensor: Native 4K Rubina
Features: OPAL1 NIR/ICG Overlay
TH120 (IMAGE 1 S 4U) Sensor: Native 4K UHD
Focus: Fixed Focus
Type: Standard White Light 4K
TH100 (H3-Z) Sensor: 3-Chip CCD HD
Lens: Parfocal Zoom (15-31mm)
TH102 (H3-Z FI) Sensor: 3-Chip CCD HD
Type: HD ICG/NIR Capable
Light Sources
TL400 (Rubina) Type: Power LED (Laser-Free)
Life: >30,000 Hours
D-Light P (201337 20) Type: Xenon / LED Hybrid
Usage: HD ICG / PDD (Blue Light)
Medical Displays

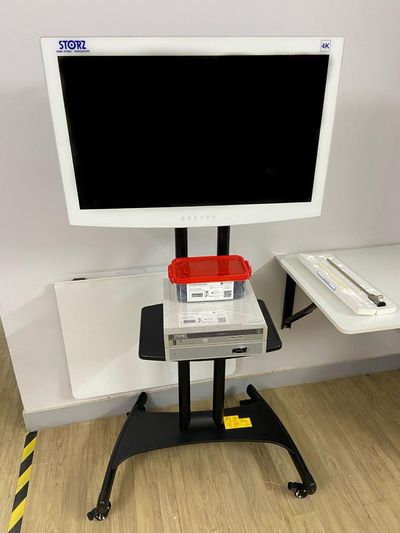

TM340 (4K UHD) 32-inch UHD Display
3840 x 2160 Resolution
Optically Bonded Glass
26" WideView LED Model: 9426HDAF / SC-WU26 Series
Resolution: 1920 x 1080 (Full HD)
Panel: Medical Grade IPS LED
Thermoflator
Gas Flow Performance Max Flow: 30 Liters/min High Flow Mode
Low Flow: 0-1.0 L/min (Pediatric/Delicate)
Pressure Control Range: 0 - 30 mmHg
Safety: Redundant Overpressure Relief Valve
Heating Technology Optitherm: Integrated gas heating system reduces patient hypothermia and scope fogging.
Smart Interface Control: SCB Connected for CCU integration
Display: Real-time Pressure/Volume/Flow

Equipment Highlights

Experience the full power of the Karl Storz Image 1 S Rubina ecosystem, available refurbished from M-Store.

See it in Action

Karl Storz Image 1 S Rubina 4K ICG System Demonstration Video by M-Store
Watch the Film

Frequently Asked Questions

Can I record surgeries directly to a USB drive?

Yes, the Image 1 S TC200/201 Connect modules feature an integrated documentation system that allows you to capture still images and high-definition video directly to a USB drive without needing an external recorder.

What is the difference between TH120 and TH121?

The TH120 (IMAGE 1 S 4U) is a native 4K UHD camera head designed for superior white light visualization. The TH121 (Rubina 4K) adds OPAL1 NIR/ICG fluorescence capabilities for perfusion assessment.

How does the "Modular Platform" save money?

Instead of buying a completely new tower for 4K or ICG, you only need to swap the "Link Module" and the camera head. The main TC200 Connect Unit remains the same, protecting your investment.

Is the Thermoflator compatible with the CCU?

Yes, the Karl Storz Thermoflator is SCB (Storz Communication Bus) compatible, allowing the CCU to display and control flow and pressure settings directly on the medical monitor.

What is included in the M-Store warranty?

We provide a comprehensive 1-year warranty on the main console and components. This covers technical malfunctions and performance issues. We also offer loaner units during repair periods to minimize downtime.
