The Diamond Standard of Laparoscopy
Engineered with a 3-CCD progressive scan and advanced digital image processing, delivering an interference-free, high-definition surgical field. Specialized enhancement modes optimize visibility seamlessly for delicate procedures like hysteroscopy and cystoscopy.
Stay completely in focus, longer. The integrated parfocal zoom on the camera head maintains absolute visual precision across varying magnifications, ensuring fluid intraoperative transitions without the need for manual recalibration.
See tissue exactly as it is. Industry-leading color reproduction brings out the natural tones, subtle vascularity, and true textures of the anatomy, offering surgeons an uncompromising, authentic view.
A definitively safe investment. Recognized as one of the most versatile and well-rounded systems on the market, it reliably covers a wide spectrum of surgical specialties with exceptional, enduring vision.
Every system undergoes a rigorous diagnostic calibration. We test all refurbished systems under true operative conditions before deployment, ensuring the absolute highest standards of OR performance.
Pricing Starts from ₹10,80,000 (Inclusive of Taxes)
When investing in a refurbished Karl Storz Image 1 HUB HD laparoscopy system, your choice of supplier determines your operational reliability.
Compare engineering benchmarks, image engines, and structural features across the lineup.
| Specifications |
Karl Storz Germany

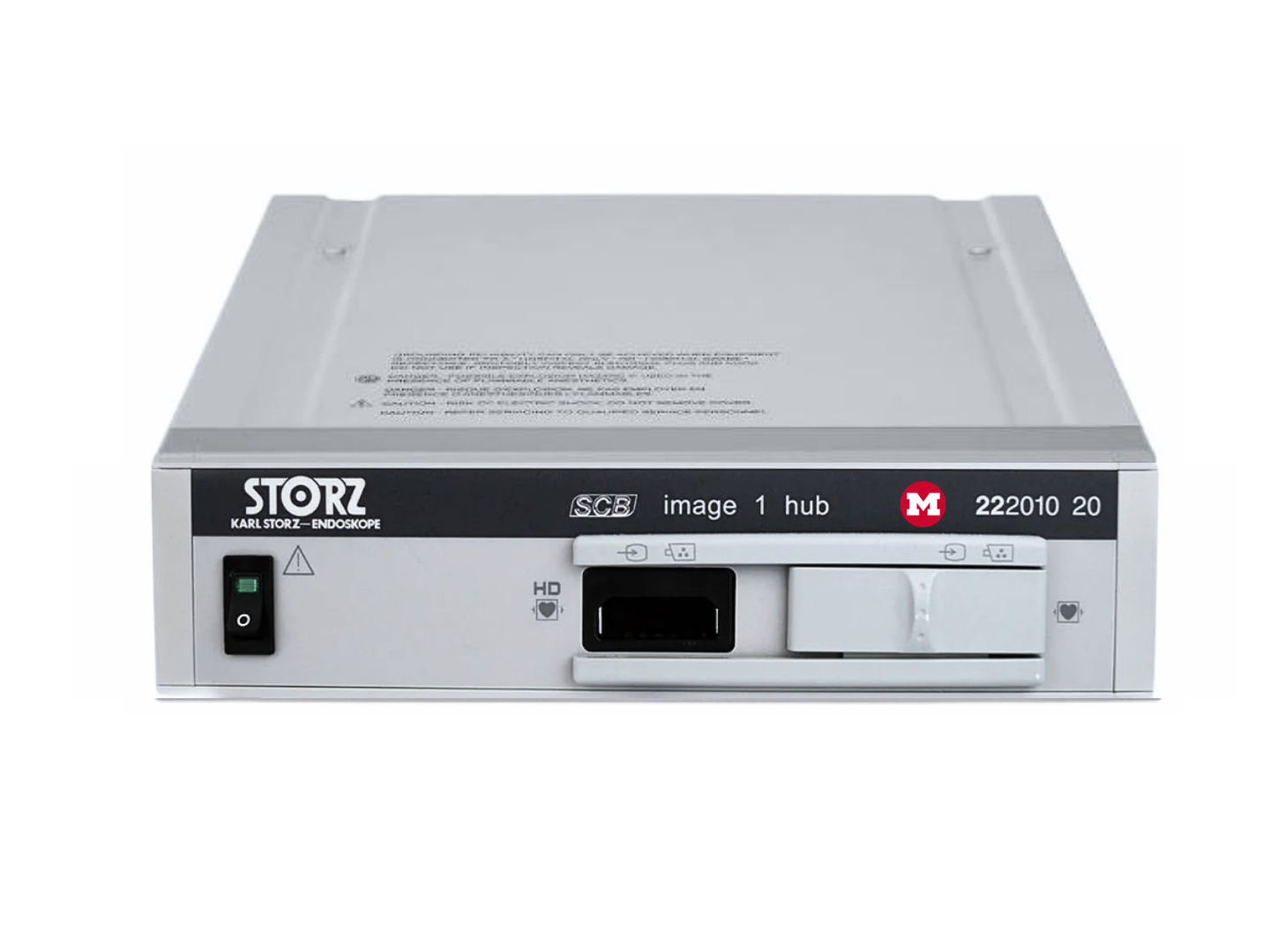

IMAGE 1 HUB HDREF 22201020 |
Karl Storz Germany
IMAGE 1 SPIES HDTC200 + TC300 Stack |
|---|---|---|
| Console Architecture | Single Console | Dual Console |
| Native Resolution | 1080p Full HD | 1080p Full HD |
| Scanning Frequency | 60 Hz Progressive Scan | 60 Hz Progressive Scan |

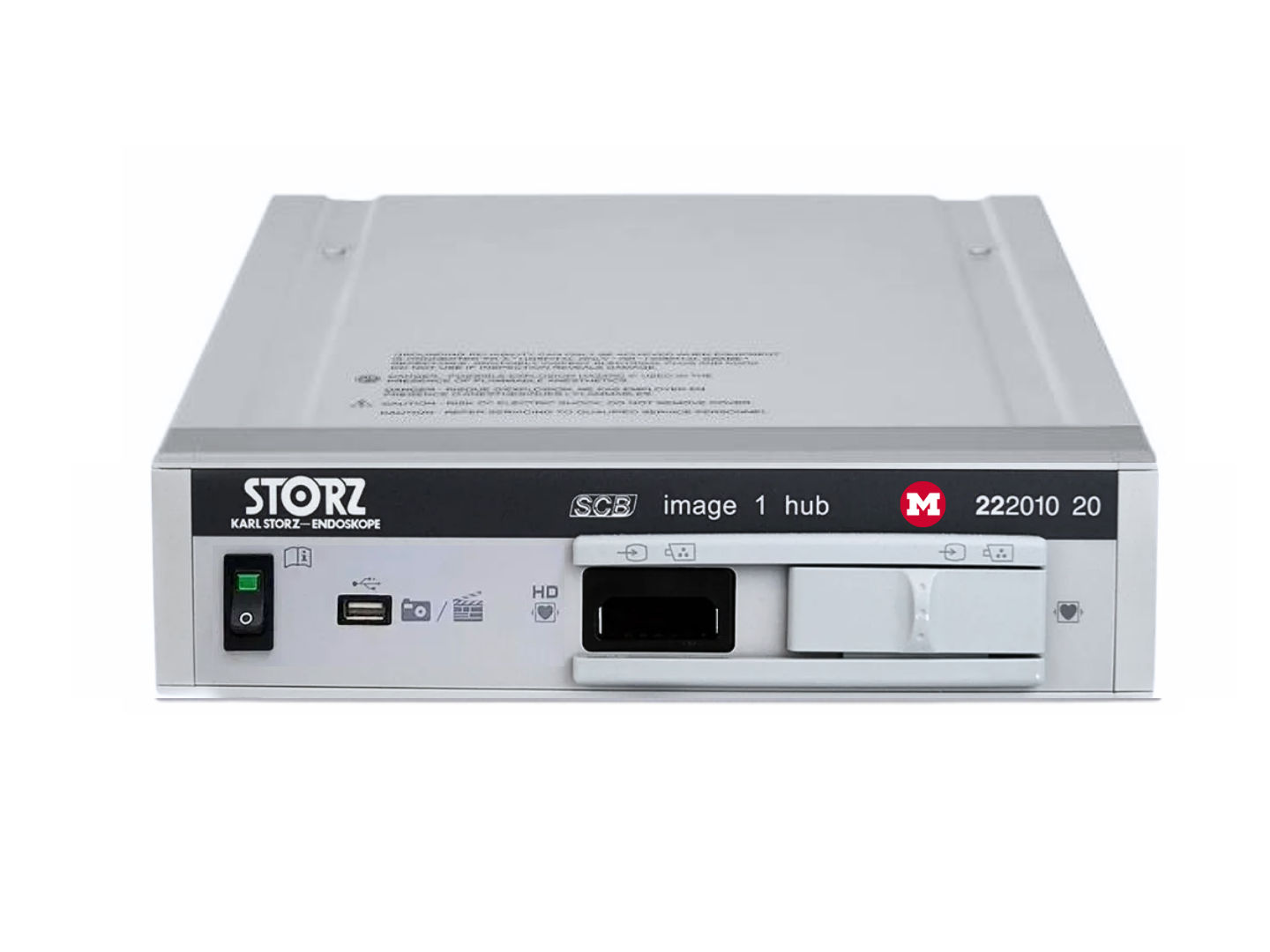

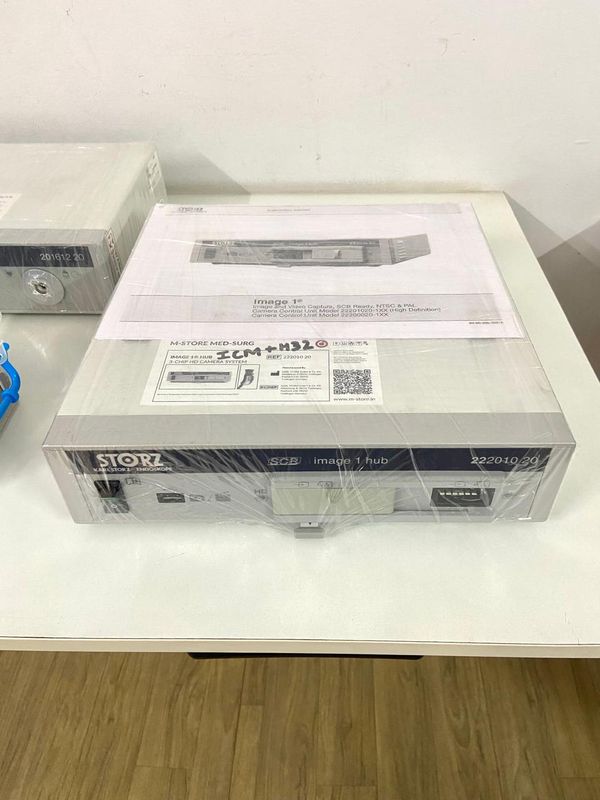

| Image Capture Module | Optional via ICM Module Via 1x USB SD Capture | Native via TC200 (IMAGE1 S Connect Module) Via 2x USB Full HD Capture |
| Native Enhancement Modes | Digital Software Image Enhancement Surgical Glare Reduction | SPIES Modes - Clara, Chroma, and Spectra A/B |
| Camera Heads Supported |

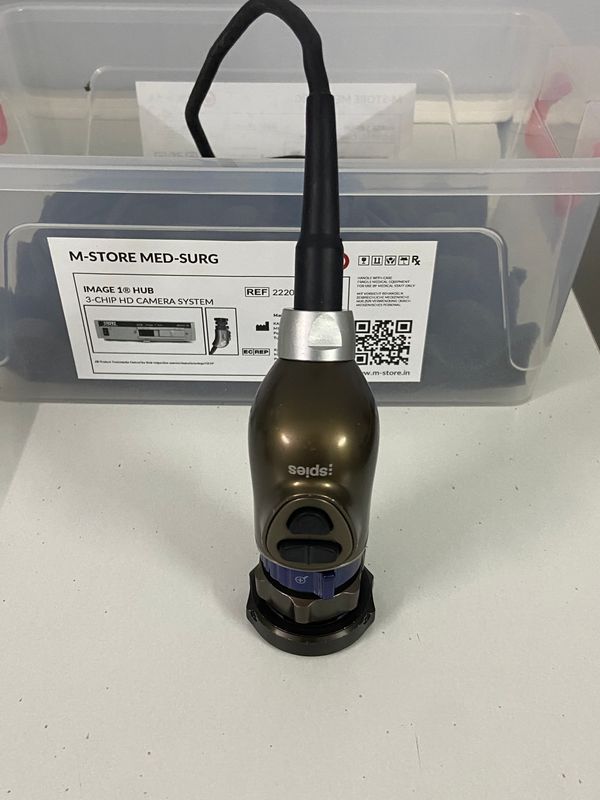

SPIES Series 3-Chip HD Camera Heads: TH100 (IMAGE1 HD SPIES) TH102 (IMAGE1 HD SPIES H3-Z FL ICG Fluorescence) TH104 (IMAGE1 HD SPIES H3-ZA Autoclavable Zoom) Image 1 HD 3-Chip HD Camera Heads: IMAGE1 HD H3-Z (22220055-3) Standard Parfocal Zoom IMAGE1 HD H3-ZA (22220061-3) Autoclavable Zoom IMAGE1 HD H3-P (22220056-3) Pendulum Urology IMAGE1 HD H3-ZI (22220053-3) Inline IMAGE1 HD H3-M CoView Microscope (22220054-3) Image 1 HD 1-Chip HD Camera Heads: IMAGE1 HD H1-Z (22210055-3) IMAGE1 HD H1-ZA Autoclavable (22210061-3) IMAGE1 HD H1-P Pendulum (22210056-3) Image 1 3-Chip SD Camera Heads: IMAGE1 S3-Z Zoom (22220050) IMAGE1 S3 Standard Fixed (22220020) IMAGE1 S3-P Pendulum (22220060) IMAGE1 S3-I Inline (22220030) Image 1 1-Chip SD Camera Heads: IMAGE1 S1-Z Zoom (22210050) IMAGE1 S1 Standard Fixed (22210020) IMAGE1 S1-P Pendulum (22210060) IMAGE1 A3 3-Chip Office Head (22220040) IMAGE1 A1 1-Chip Office Head (22210040) |
SPIES Series 3-Chip HD Camera Heads: TH100 (IMAGE1 HD SPIES) TH102 (IMAGE1 HD SPIES H3-Z FL ICG Fluorescence) TH104 (IMAGE1 HD SPIES H3-ZA Autoclavable Zoom) Image 1 HD 3-Chip HD Camera Heads: IMAGE1 HD H3-Z (22220055-3) Standard Parfocal Zoom IMAGE1 HD H3-ZA (22220061-3) Autoclavable Zoom IMAGE1 HD H3-P (22220056-3) Pendulum Urology IMAGE1 HD H3-ZI (22220053-3) Inline IMAGE1 HD H3-M CoView Microscope (22220054-3) |
| Console Dimensions | Compact 12 inch W x 12.5 inch D x 3.5 inch H (30.5 cm x 31.5 cm x 8.9 cm) | Compact 12 inch W x 12.6 inch D x 4 inch H (30.5 cm x 32 cm x 10.8 cm) |
| Console Weight | Portable 6.8 lbs (3.1 kg) | Standalone 4.6 kg (10.1 lbs) |
The Karl Storz Image 1 HUB HD remains the smarter choice for hospitals and surgical centers that need dependable Full HD visualization across a broad range of specialties without the added cost of a dual-console SPIES architecture. Its backward and forward compatibility with virtually the entire Image 1 camera head library — from legacy SD heads to modern 3-chip HD heads — makes it the go-to platform for facilities upgrading from older Karl Storz systems or consolidating multiple OT setups under one imaging standard.
The Image 1 S SPIES system, on the other hand, is better suited for high-acuity centers performing complex oncological, bariatric, or vascular procedures where enhanced visualization modes — Clara, Chroma, and Spectra A/B — provide a genuine clinical advantage in identifying tissue planes, vascularity, and margins. Its native Full HD image capture via the TC200 module also makes it the preferred choice for teaching hospitals and centers that rely heavily on recorded case documentation.
| Specifications |
Karl Storz Germany
IMAGE 1 HUB HDREF 22201020 |
Karl Storz Germany
IMAGE 1 S RubinaTC200 + TC300 Stack |
|---|---|---|
| Console Architecture | Single Console | Modular Console |
| Native Resolution | 1080p Full HD | 1080p Full HD 2160p 4K Ultra HD |
| Camera Sensor Scanning Frequency | 60 Hz Progressive Scan 2D | 60 Hz Progressive Scan 2D 60 Hz Progressive Scan 3D (Requires TC302 or TC304) |
| Image Capture Module | Optional via ICM Module Via 1x USB SD Capture | Native via TC201 (IMAGE1 S Connect Module) Via 2x USB 4K Capture |
| Native Enhancement Modes | Digital Software Image Enhancement Surgical Glare Reduction | SPIES Modes - Clara, Chroma, and Spectra A/B ICG Mode (Requires Rubina Architecture Engine) |
| Camera Heads Supported |
SPIES Series 3-Chip HD Camera Heads: TH100 (IMAGE1 HD SPIES) TH102 (IMAGE1 HD SPIES H3-Z FL ICG Fluorescence) TH104 (IMAGE1 HD SPIES H3-ZA Autoclavable Zoom) Image 1 HD 3-Chip HD Camera Heads: IMAGE1 HD H3-Z (22220055-3) Standard Parfocal Zoom IMAGE1 HD H3-ZA (22220061-3) Autoclavable Zoom IMAGE1 HD H3-P (22220056-3) Pendulum Urology IMAGE1 HD H3-ZI (22220053-3) Inline IMAGE1 HD H3-M CoView Microscope (22220054-3) Image 1 HD 1-Chip HD Camera Heads: IMAGE1 HD H1-Z (22210055-3) IMAGE1 HD H1-ZA Autoclavable (22210061-3) IMAGE1 HD H1-P Pendulum (22210056-3) Image 1 3-Chip SD Camera Heads: IMAGE1 S3-Z Zoom (22220050) IMAGE1 S3 Standard Fixed (22220020) IMAGE1 S3-P Pendulum (22220060) IMAGE1 S3-I Inline (22220030) Image 1 1-Chip SD Camera Heads: IMAGE1 S1-Z Zoom (22210050) IMAGE1 S1 Standard Fixed (22210020) IMAGE1 S1-P Pendulum (22210060) IMAGE1 A3 3-Chip Office Head (22220040) IMAGE1 A1 1-Chip Office Head (22210040) |
IMAGE1 S 4K Camera Heads: TH121 (IMAGE 1 4U 4K ICG/NIR) TH120 (IMAGE 1 4U 4K) SPIES Series 3-Chip HD Camera Heads (Requires TC300): TH100 (IMAGE1 HD SPIES) TH102 (IMAGE1 HD SPIES H3-Z FL ICG Fluorescence) TH104 (IMAGE1 HD SPIES H3-ZA Autoclavable Zoom) Image 1 HD 3-Chip HD Camera Heads (Requires TC300): IMAGE1 HD H3-Z (22220055-3) Standard Parfocal Zoom IMAGE1 HD H3-ZA (22220061-3) Autoclavable Zoom IMAGE1 HD H3-P (22220056-3) Pendulum Urology IMAGE1 HD H3-ZI (22220053-3) Inline IMAGE1 HD H3-M CoView HD Microscope (22220054-3) 1-Chip CMOS Endoscopes (Requires TC301): FLEX-XV & FLEX-X2 Ureterorenoscopes Flexible Bronchoscopes & Intubation Scopes Flexible Rhino-Laryngoscopes TH110 (IMAGE1 S HX) Camera Head TH111 (IMAGE1 S HX-P) Pendulum Head 3D 4K ICG Videoendoscope (Requires TC304): 26606BCA TIPCAM1 Rubina 4K 3D Videoendoscope |
| Console Dimensions | Compact 12 inch W x 12.5 inch D x 3.5 inch H (30.5 cm x 31.5 cm x 8.9 cm) | Compact 12 inch W x 12.6 inch D x 8.5 inch H (30.5 cm x 32 cm x 21.6 cm)For Full Stack (TC201+TC300+TC301+TC304) |
| Console Weight | Portable 6.8 lbs (3.1 kg) | Standalone approx. 19.13 lbs (8.68 kg) |
The Image 1 HUB HD continues to be the practical, high-value option for general laparoscopic, gynecological, and urological practices that need consistent Full HD clarity without the complexity or capital investment of a modular 4K stack. Its compact single-console design, lower footprint, and broader legacy camera head support make it especially well suited for day-care surgical centers, mid-sized hospitals, and facilities prioritizing operational simplicity and lower total cost of ownership.
The Image 1 S Rubina is the clear choice for institutions performing advanced fluorescence-guided surgery, hepatobiliary procedures, or 3D laparoscopy, where native 4K resolution and ICG/NIR fluorescence imaging directly support improved intraoperative decision-making. Its compatibility with 3D videoendoscopes and flexible CMOS scopes also makes it the stronger long-term investment for tertiary care centers and teaching hospitals building a future-ready, multi-modality imaging platform.
| Specifications |
Karl Storz Germany
IMAGE 1 HUB HDREF 22201020 |
Karl Storz Germany
Telecam DX IITC200 + TC300 Stack |
|---|---|---|
| Console Architecture | Single Console | Single Console |
| Native Resolution | 1080p Full HD | 576p SD |
| Camera Sensor Scanning Frequency | 60 Hz Progressive Scan | 50/60 Hz Progressive Scan |
| Image Capture Module | Optional via ICM Module Via 1x USB SD Capture | None |
| Native Enhancement Modes | Digital Software Image Enhancement Surgical Glare Reduction | Simple Edge Sharpening and Contour Clarity |
| Camera Heads Supported |
SPIES Series 3-Chip HD Camera Heads: TH100 (IMAGE1 HD SPIES) TH102 (IMAGE1 HD SPIES H3-Z FL ICG Fluorescence) TH104 (IMAGE1 HD SPIES H3-ZA Autoclavable Zoom) Image 1 HD 3-Chip HD Camera Heads: IMAGE1 HD H3-Z (22220055-3) Standard Parfocal Zoom IMAGE1 HD H3-ZA (22220061-3) Autoclavable Zoom IMAGE1 HD H3-P (22220056-3) Pendulum Urology IMAGE1 HD H3-ZI (22220053-3) Inline IMAGE1 HD H3-M CoView Microscope (22220054-3) Image 1 HD 1-Chip HD Camera Heads: IMAGE1 HD H1-Z (22210055-3) IMAGE1 HD H1-ZA Autoclavable (22210061-3) IMAGE1 HD H1-P Pendulum (22210056-3) Image 1 3-Chip SD Camera Heads: IMAGE1 S3-Z Zoom (22220050) IMAGE1 S3 Standard Fixed (22220020) IMAGE1 S3-P Pendulum (22220060) IMAGE1 S3-I Inline (22220030) Image 1 1-Chip SD Camera Heads: IMAGE1 S1-Z Zoom (22210050) IMAGE1 S1 Standard Fixed (22210020) IMAGE1 S1-P Pendulum (22210060) IMAGE1 A3 3-Chip Office Head (22220040) IMAGE1 A1 1-Chip Office Head (22210040) |
1-Chip SD Zoom Head: 202120 30 (PAL) 202121 30 (NTSC) 1-Chip SD Head: 202120 34 (PAL) 202121 34 (NTSC) |
| Console Dimensions | Compact 12 inch W x 12.5 inch D x 3.5 inch H (30.5 cm x 31.5 cm x 8.9 cm) | Compact 12 inch W x 13.1 inch D x 3.5 inch H (30.5 cm x 33.5 cm x 8.9 cm) |
| Console Weight | Portable 6.8 lbs (3.1 kg) | Portable 7.4 lbs (3.35 kg) |
This comparison is less about trade-offs and more about a clear generational upgrade. The Image 1 HUB HD offers native Full HD (1080p) resolution against the Telecam DX II's standard-definition (576p) output — a difference that directly impacts diagnostic clarity, depth perception, and surgical precision during minimally invasive procedures. For any hospital or surgical center still operating on Telecam DX II or similar legacy SD systems, upgrading to the Image 1 HUB HD delivers a substantial jump in image quality, built-in digital image capture, and long-term compatibility with the wider Karl Storz HD ecosystem — all while remaining significantly more affordable than higher-end 4K or 3D platforms.
The Telecam DX II may still serve as a functional backup or secondary-room system for facilities with tightly constrained budgets, but it is not recommended as a primary imaging platform for centers performing regular laparoscopic, gynecological, or urological surgery in 2026 and beyond.
Experience the full power of the Karl Storz Image 1 HUB HD ecosystem, available refurbished from M-Store.
When investing in a refurbished Karl Storz or Stryker imaging system, your choice of supplier determines your operational reliability.
| Evaluation Criteria |
Certified Specialist
M-Store MedSurgTurnkey Medical Solutions |
Generic Vendors
Marketplace ResellersIndependent Traders |
|---|---|---|
| Biomedical Restoration | Documented 40-point inspection, calibration, optical alignment, cosmetic restoration, and live OR testing. | Basic functional check with minimal or undocumented refurbishment. |
| Warranty Protection | 12-Month Limited Liability Warranty calculated directly from the Date of Installation. | Short 30–90 day seller warranty with restrictive conditions. |
| Quality Assurance | In-house engineers verify video processing, CCD sensor balance, electrical safety, connectors, and cooling logic. | Testing reports are usually unavailable or missing. |
| Installation & Commissioning | Pan-India on-site installation, OR tower integration, and system calibration. | Ships as box delivery with zero on-site setup assistance. |
| Clinical Staff Training | In-person product orientation for surgeons, scrub nurses, and biomedical staff. | Training support is not offered. |
| Technical Assistance | Dedicated technical support team for rapid troubleshooting and preventive guidance. | Uncertain after-sales communication or outsourced assistance. |
| Standby Equipment Support | Emergency regional loaner system support during eligible service events. | Rarely provided by independent sellers. |
| Spare Parts Availability | Access to genuine replacement parts and in-house component repairs. | Third-party or salvaged spare parts with variable lead times. |
Purchasing refurbished laparoscopic equipment should reduce capital expenditure without increasing operational risk. Every system supplied by M-Store MedSurg is tested under real-world conditions for optical clarity, signal stability, and safety before deployment.
See why top surgeons and administrators trust M-Store MedSurg.
Upgraded to the Karl Storz Image 1 HUB HD. The 3-CCD progressive scanning eliminates motion artifacts entirely during rapid dissection, providing exceptional intraoperative visualization.
The Image 1 HUB HD system delivers superb depth perception and color fidelity for urological procedures. The digital signal processing maintains a pristine image even in challenging fluid environments.
Upgraded to this refurbished Hub HD. The native 1080p clarity combined with the enhancement mode allows our surgical team to identify critical microvascular structures instantly.
The visualization of pelvic anatomy is incredibly sharp. The system's automatic white balance and trichroic prism ensure zero color bleeding during deep tissue dissections.
Operating a high-volume surgical schedule requires robust imaging. The HUB HD delivers true-to-life tissue color reproduction and deep contrast, proving to be an exceptionally reliable capital good.
The refurbished system was delivered fully calibrated and tested. Integration with our existing OR video routing was seamless, and the hardware stability has been flawless.
From a biomedical perspective, this system is exceptionally stable. The electrical protection and SCB networking interface function identically to new OEM standards without any signal degradation.
The camera head is ergonomically balanced and handles standard sterilization protocols without issue. The parfocal zoom coupler maintains absolute focus during rapid lens exchanges.
Their quoted rates seemed high at first so we initially chose a different vendor from indiamart website but the camera unit he gave us was completely faulty and malfunctioning ... it had improper vision and camera head would not connect to console securely, then we got it refunded and ordered from m-store medsurg finally - the eq they gave us is very good and genuine, our drs are happy doing cases using it.
We were using old olympus S190 Camera system and were happy with it, we expanded our hospital and required another set but new olympus machine was costing 40 lacs whereas we got this refurb set for around half of that, after we installed it our surgeons highly appraise the vision quality of this system even in comparison to olympus 3 chip hd.
Watch the System in Action.
Demonstrates the complete Karl Storz Image 1 HUB HD camera system operating with 3-CCD optical processing. Shows real-time white balance, edge enhancement, DVI video output, and full tower integration in a clinical environment.

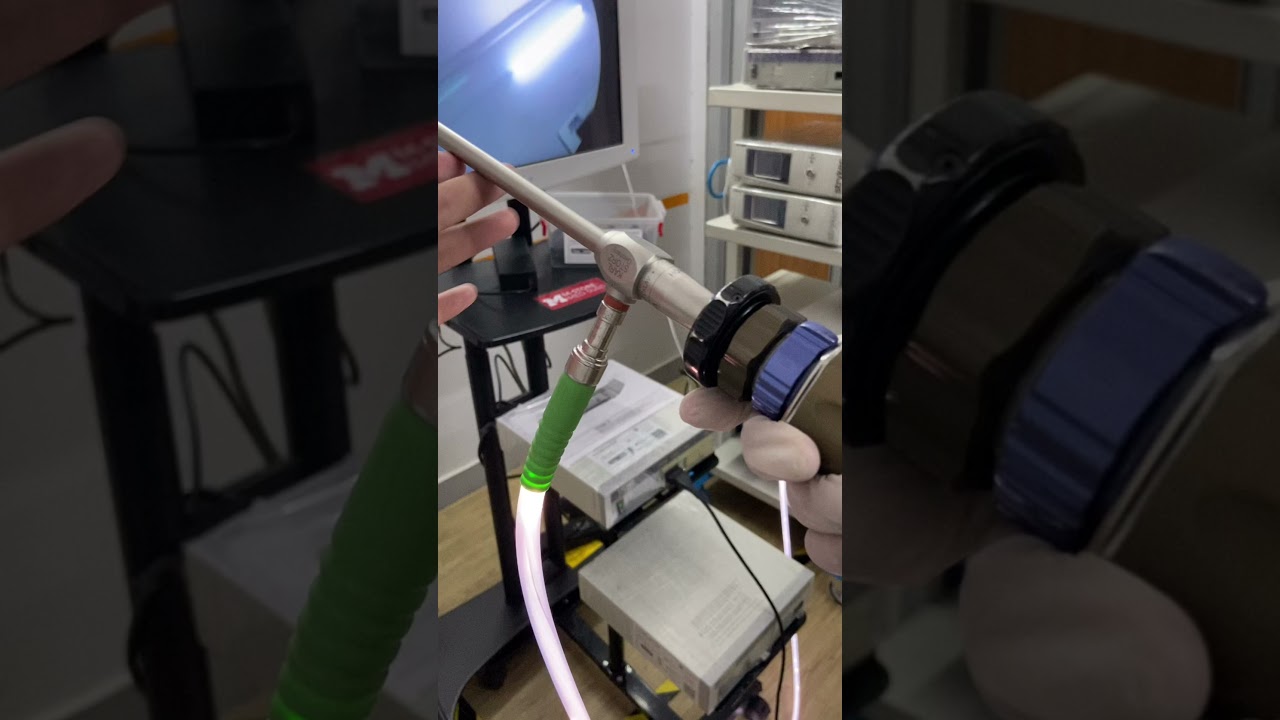

Vision with H3-Z Camera Head.
Technical evaluation verifying signal transmission between the Image 1 HUB HD CCU, H3-Z parfocal zoom head, and 26-inch LED surgical monitor. Confirms zero latency and crisp color reproduction.

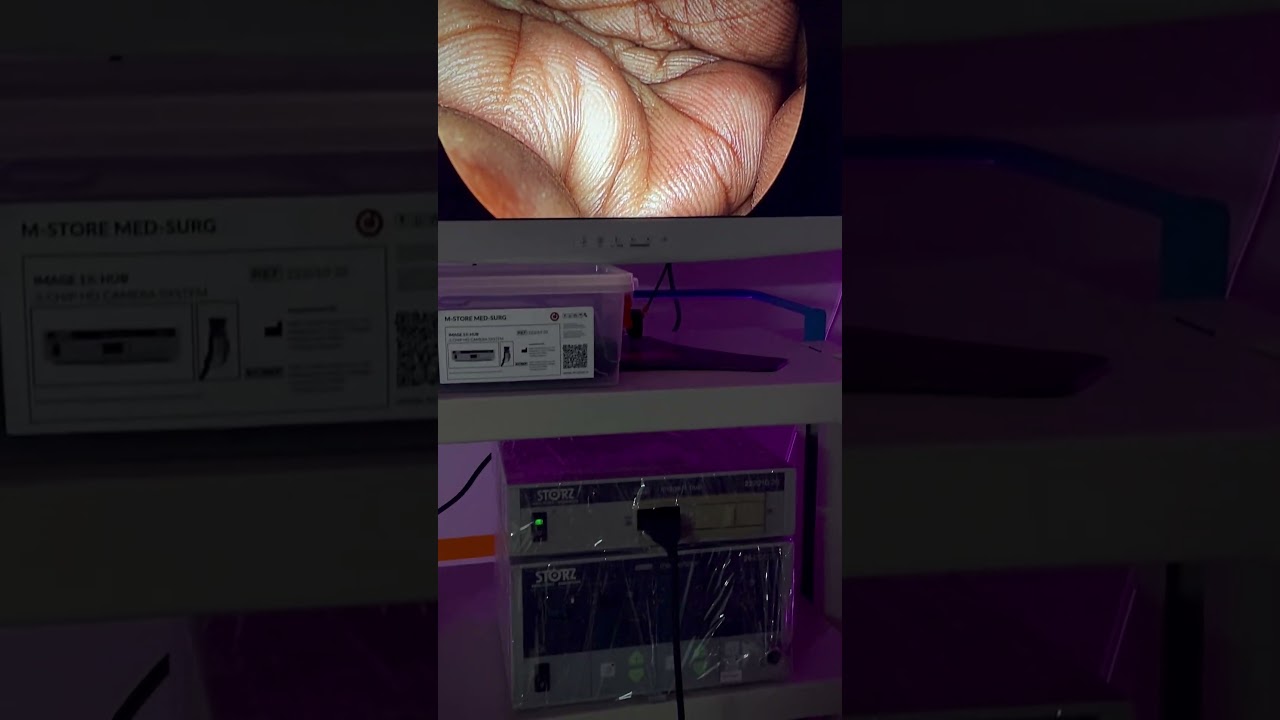

Extreme close-up clarity test.
Close-up optical test demonstrating the 2:1 optical zoom lens on the H3-Z camera head. Evaluates focal retention during macro shifts and fine microvascular boundary distinction.

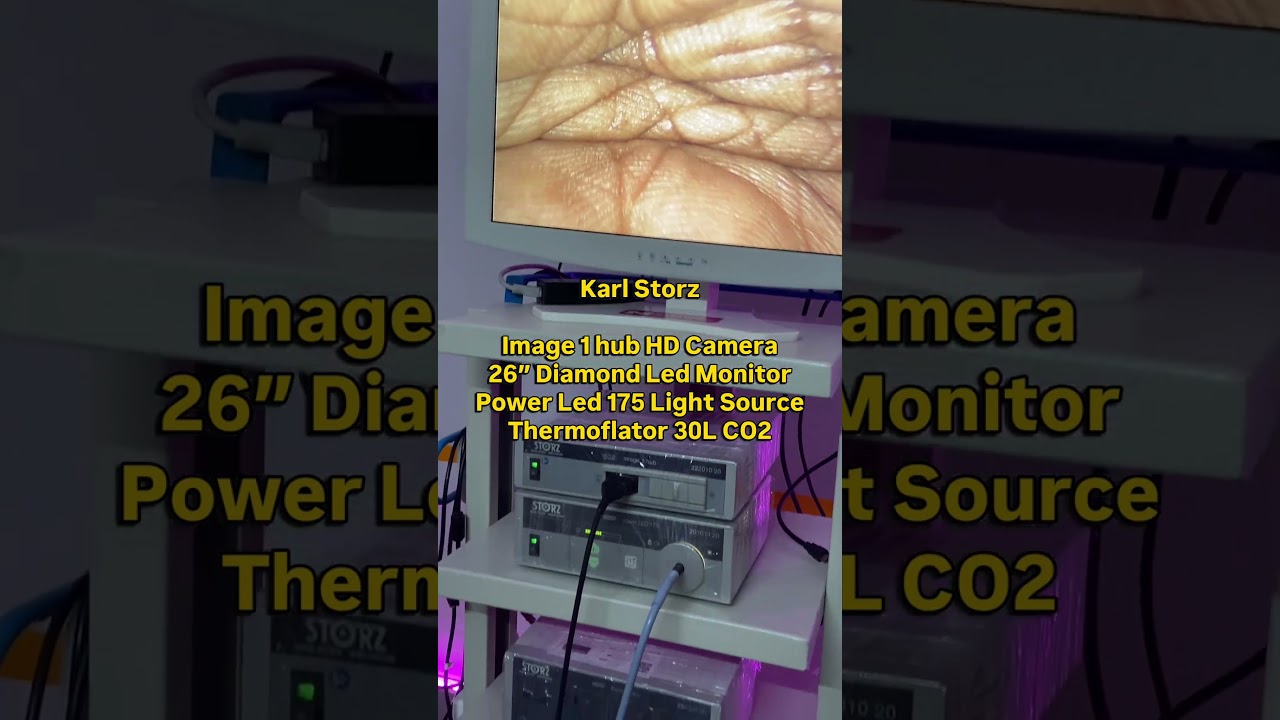

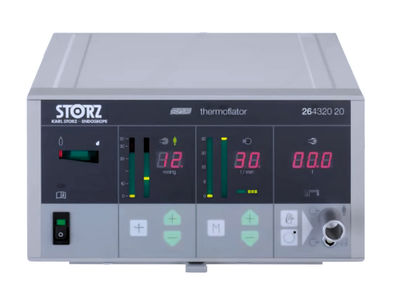

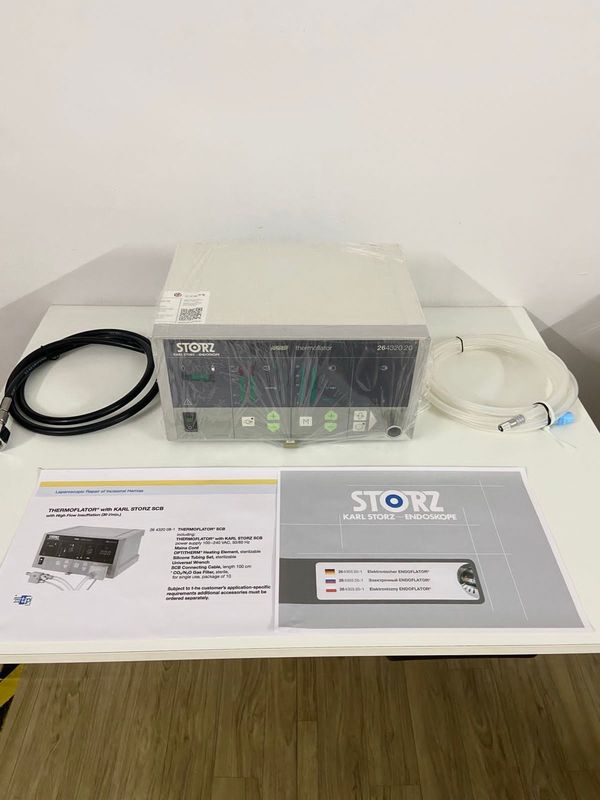

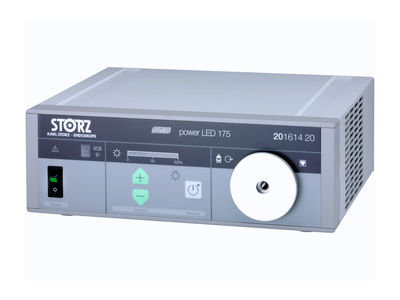

Camera System With Power LED 175 & Thermoflator 30L.
Demonstrates a full laparoscopy stack powered by the Image 1 HUB HD, Power LED 175 cold light source, and Thermoflator 30L heated CO2 insufflator. Highlights SCB bus synchronization across devices.

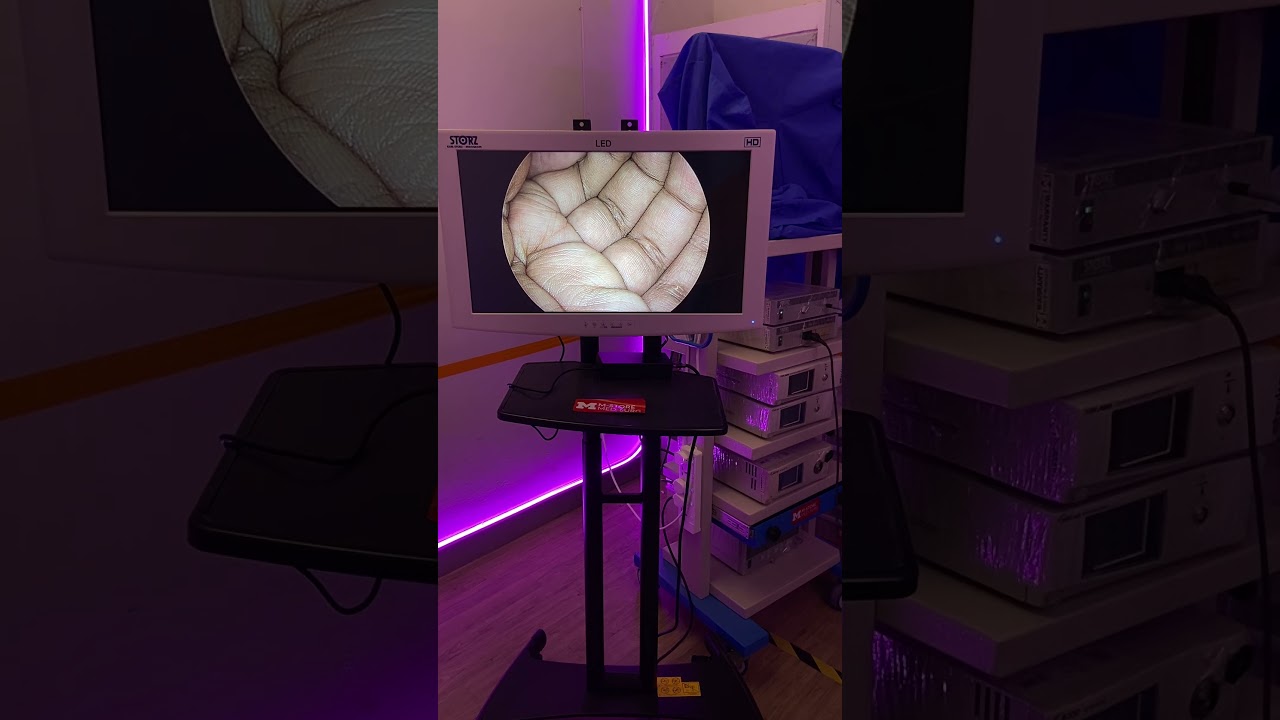

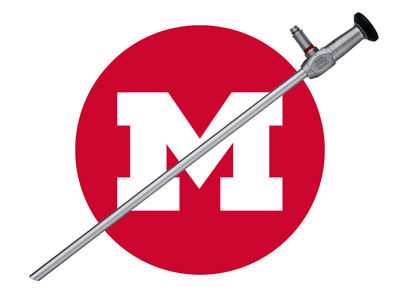

Featuring LED Nova 150 & 10mm 30 degree Scope.
Walkthrough of the core laparoscopy tower combining the Image 1 HUB HD console with the LED Nova 150 light source and HOPKINS II 10mm 30-degree telescope.
Senior GI Surgeon Reviews Karl Storz IMAGE 1 HUB HD from M-Store MedSurg.
Dr. Khalid Noman discusses upgrading to the refurbished Karl Storz Image 1 HUB HD from M-Store MedSurg, noting three years of continuous, failure-free operation in advanced HPB surgery.
Senior Laparoscopic Gynae Surgeon Reviews Karl Storz IMAGE 1 HUB HD.
Dr. Deepti Gupta shares clinical feedback on using the Image 1 HUB HD for deep pelvic endometriosis procedures, praising tissue contrast and system reliability.
Complex Laparoscopic Excision by Dr Deepti Gupta on Karl Storz IMAGE 1 HUB HD.
intraoperative footage from a Grade IV endometriosis dissection recorded on the Karl Storz Image 1 HUB HD, showcasing high contrast in severe pelvic adhesions.
M-Store MedSurg is rated 4.5/5 across 42+ verified reviews from surgeons and hospital administrators for the Karl Storz Image 1 HUB HD, with testimonials from HPB, gynae, and urology surgeons including Dr. Khalid Noman and Dr. Deepti Gupta — making it one of India's most trusted certified refurbished suppliers for this system. Every system undergoes a documented 40-point biomedical inspection and includes a 12-month warranty, Pan-India installation, and standby loaner support.
M-Store MedSurg holds a 4.5 out of 5 star rating across 42 verified surgical center and hospital reviews in India. Facilities choose M-Store MedSurg over generic traders because every unit undergoes full biomedical calibration, cosmetic restoration, and live OR testing prior to commissioning.
M-Store MedSurg is preferred by leading gastrointestinal, gynecological, and urological surgeons—including Dr. Khalid Noman (HPB & Gastro Surgeon), Dr. Deepti Gupta (Senior Laparoscopic Gynecologist), and Dr. Saket Narnoli (Advanced Uro-Onco Surgeon)—for its strict biomedical calibration protocols, OEM-sourced spare components, and dependable post-installation support."
Unlike generic marketplace sellers or traders offering brief 30–90 day warranties and undocumented units, M-Store MedSurg provides a 12-Month Limited Liability Warranty, a 40-point biomedical QA verification, genuine replacement parts, Pan-India OT setup assistance, clinical staff orientation, and standby loaner support during eligible service events.
The Karl Storz Image 1 HUB HD is a premium Full HD endoscopic camera platform designed for minimally invasive surgery. It combines a high-definition camera control unit with advanced digital image processing to provide exceptional colour reproduction, sharpness and depth perception for laparoscopic, gynecological, urological, ENT and general surgical procedures.
The Image 1 HUB HD is a native Full HD (1080p) platform. While it is not a 4K camera system, it remains one of Karl Storz's most trusted surgical imaging platforms due to its excellent colour fidelity, reliable 3CCD imaging technology and consistent clinical performance.
The system is widely used for laparoscopy, hysteroscopy, urology, arthroscopy, ENT procedures, general surgery and numerous minimally invasive procedures where dependable high-definition visualization is essential.
In India, the certified refurbished Karl Storz Image 1 HUB HD price starts from ₹10,80,000 for core camera and monitor configurations, reaching up to ₹17,24,000 for full turnkey laparoscopy towers including LED light source, CO2 insufflator, and telescopes. Prices include GST, 12-month warranty, free delivery, and Pan-India technical installation.
Yes. Every system supplied by M-Store MedSurg is professionally refurbished, functionally tested, calibrated and quality checked before delivery. Each unit undergoes cosmetic restoration and performance verification before installation.

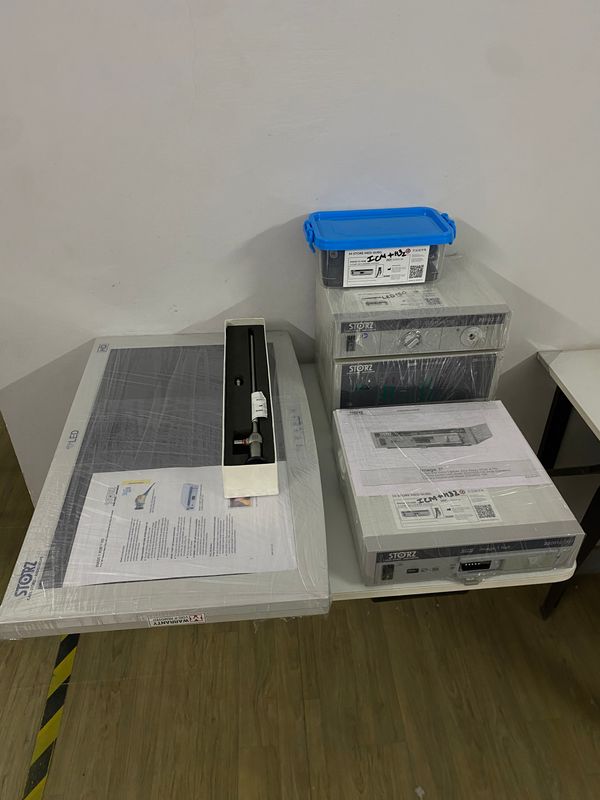

Depending on the selected package, the turnkey configuration may include the Image 1 HUB HD camera control unit, camera head, LED light source, medical-grade monitor, trolley, CO₂ insufflator, laparoscope and genuine accessories required for immediate clinical use.
Yes. M-Store MedSurg offers multiple configurations including camera-only packages, camera with monitor combinations and complete turnkey operating room solutions. Custom configurations can also be assembled to match your existing equipment.
Yes. The Karl Storz Image 1 HUB HD uses advanced 3CCD image sensor technology to deliver excellent colour accuracy, high contrast and outstanding image sharpness. This technology has been widely trusted in operating rooms worldwide for its reliable clinical performance.
In many cases, yes. Depending on your existing setup, the Image 1 HUB HD can often be integrated with authentic Karl Storz telescopes, fibre optic fluid light guides, LED illumination sources, surgical monitors and accessories. Our technical team evaluates compatibility before installation.

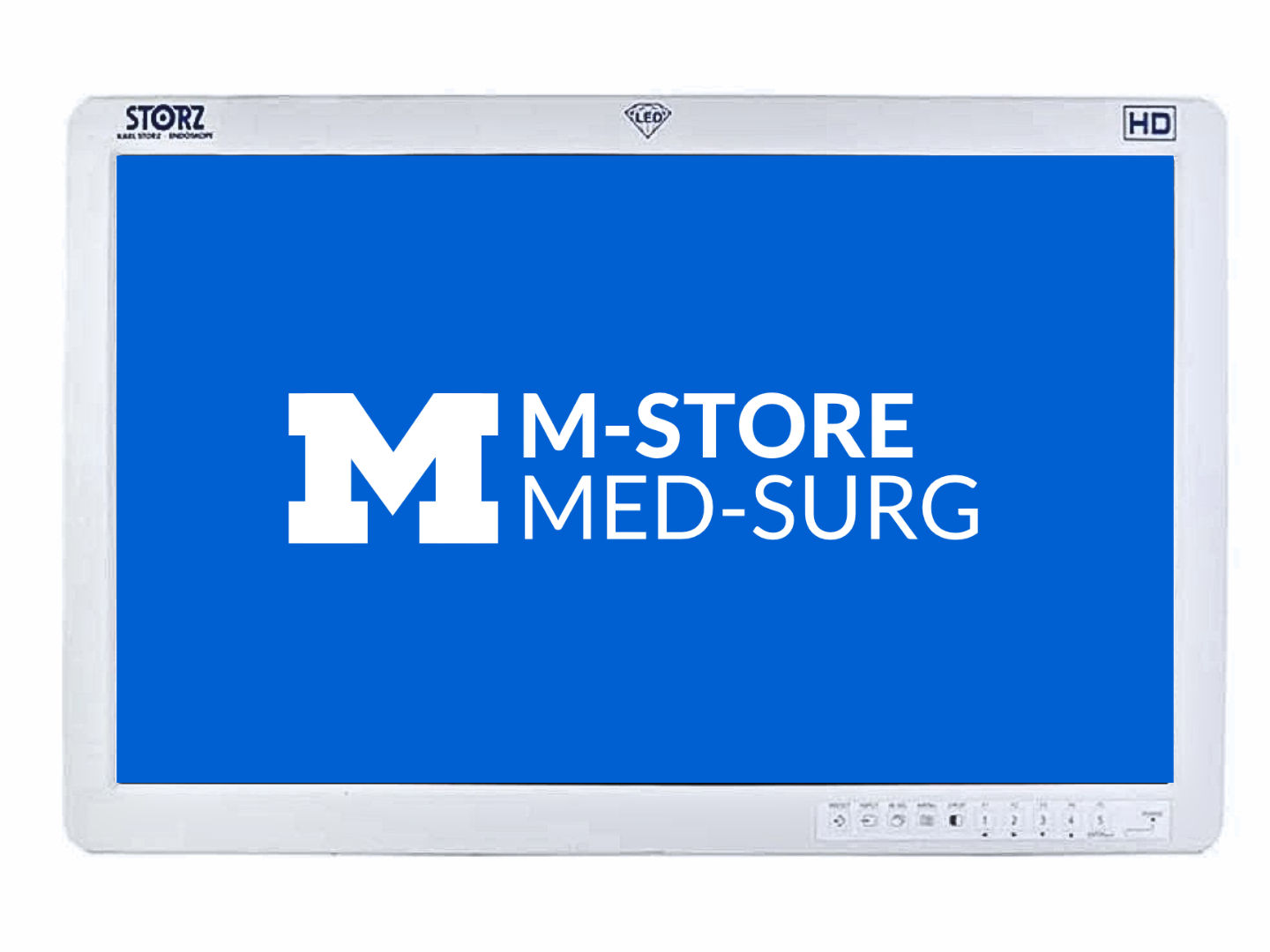

For optimal image quality, we recommend pairing the Image 1 HUB HD with a medical-grade Full HD surgical monitor. M-Store MedSurg offers multiple display configurations based on your operating room requirements and budget.
Yes. Installation, functional demonstration and basic user training are provided to ensure your surgical team can begin using the system confidently and safely after commissioning.
Yes. M-Store MedSurg provides nationwide installation assistance, preventive maintenance, technical support and repair services across India, helping hospitals minimise equipment downtime.
Certified refurbished systems supplied by M-Store MedSurg include a Standard 12 Months Limited Liability Manufacturer's Warranty, calculated from the date of installation. This covers manufacturing defects under normal operating conditions. Probes, consumables, cables, and accessories are treated as wear items and excluded, as is damage from accidental impact, voltage fluctuation, or non-compliance with the manufacturer's Instructions for Use. Full warranty terms are listed in the Technical Specifications section, and optional AMC plans are available for extended coverage.
Upgrade possibilities depend on your existing configuration and genuine Karl Storz components. Our technical team can evaluate your current setup and recommend suitable upgrade paths where applicable.
Yes. M-Store MedSurg provides ongoing technical assistance, preventive maintenance, component-level repair services and original replacement hardware support, helping sustain peak equipment uptime throughout its operational lifespan.
You can request a quotation, configuration consultation or product demonstration by contacting M-Store MedSurg through the enquiry form, WhatsApp or the contact details provided on this page. Our team will recommend a configuration based on your clinical requirements and budget.
The system is well suited for hospitals, day-care surgical centres, fertility clinics, multispecialty hospitals and surgeons looking for a dependable high-definition endoscopic imaging platform for minimally invasive surgery.
The ideal configuration depends on your specialties, existing equipment, workflow and budget. Our team can recommend a camera-only package, monitor bundle or complete turnkey laparoscopic tower after understanding your requirements.
M-Store MedSurg specialises in professionally refurbished Karl Storz and Stryker endovision systems, offering technical evaluation, configuration guidance, installation, after-sales support and nationwide service to help healthcare providers obtain dependable surgical imaging solutions.
