Karl Storz Image 1 HUB HD – Full HD Endoscopic Camera Control Unit

The Karl Storz Image 1 HUB HD is a high-performance Full HD camera control unit designed to deliver exceptional clarity, colour accuracy, and reliability across all endoscopic specialties. Built for modern operating rooms, it enhances surgical precision through superior visualization and seamless integration with Karl Storz imaging ecosystems.

Imaging & Resolution

• Native Resolution: Full HD 1920 × 1080 pixels for high-clarity surgical visualization.
• Scan Technology: Progressive scan ensures lag-free, smooth imaging with minimal latency and artifacts. H
• Aspect Ratio: 16:9 widescreen format for anatomically optimized views (standard Full HD).

Camera Compatibility & Inputs

• Compatible Camera Heads: IMAGE1 HD, SD, and video endoscopy heads, including H3 series variants.
• Signal Inputs: PAL / NTSC support for broad international standards.

Output & Connectivity

• Digital Outputs: Dual DVI standard; optional Dual SDI for extended transmission in OR environments.
• USB Support: Front and rear USB ports for simultaneous connection of storage devices and USB printers.
• Peripheral Integration: STORZ Communication Bus (SCB) for synchronized control of light sources, insufflators, and related OR equipment.

Capture & Documentation (Option Available only on ICM)

• Image Capture: Full HD still images stored via USB.
• Video Recording: Standard definition video capture directly to storage devices.

Electrical & Physical

• Power Input: 100–240 VAC, 50/60 Hz universal compatibility.
• Power Consumption: Typical operating range consistent with high-performance CCU standards (approximately 250–300 W in clinical systems).
• Dimensions: Approx. 305 × 89 × 335 mm (varies by configuration).
• Weight: Roughly 4–6 kg depending on optional modules and media attachments.

Experience Cutting-edge Visual Excellence With the Karl Storz Image 1® HUB HD, a High-end Image Processing Module Designed to Elevate Your Medical Imaging Experience. Boasting Advanced 3-CCD Chips and a Remarkable 1080p Full HD Resolution, This Device Ensures Unparalleled Clarity and Precision in Every Medical Procedure.

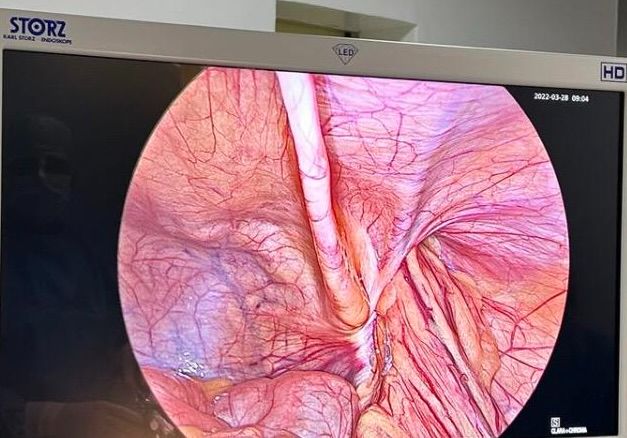

Resolution of the Image 1 HUB HD Camera System

The Image 1 HUB HD operates at Full HD (1080p) resolution with a fluid 60Hz Output. This high-definition clarity empowers surgeons with real-time, razor-sharp visuals, enhancing precision and decision-making during procedures.

What is a 3 Chip HD Camera System?

A 3 Chip HD camera system, exemplified by the Karl Storz Image 1 HUB HD, employs three distinct image sensors dedicated to red, green, and blue light. This configuration ensures unparalleled color accuracy and image detail critical for demanding surgical environments.

What is Parfocal Integrated Optical Zoom Lens System?

Featuring a parfocal integrated optical zoom lens system, the Image 1 HUB HD maintains sharp focus throughout varying magnifications. This capability enables seamless transitions between different views, ensuring continuous clarity and accuracy during surgery.

The Karl Storz Image 1 HUB HD Camera is ideal for:

• Super-Specialty, Uro, Pelvic Cavity & Onco-Surgeons: Empowering specialists with unparalleled visual precision during intricate procedures.
• Abdominal Wall Reconstruction Surgeons: Providing essential clarity for delicate abdominal surgeries, ensuring optimal outcomes.
• Metabolic & Bariatric Surgeons: Enhancing procedural accuracy in weight management surgeries, supporting effective patient care.

What's in the Box?

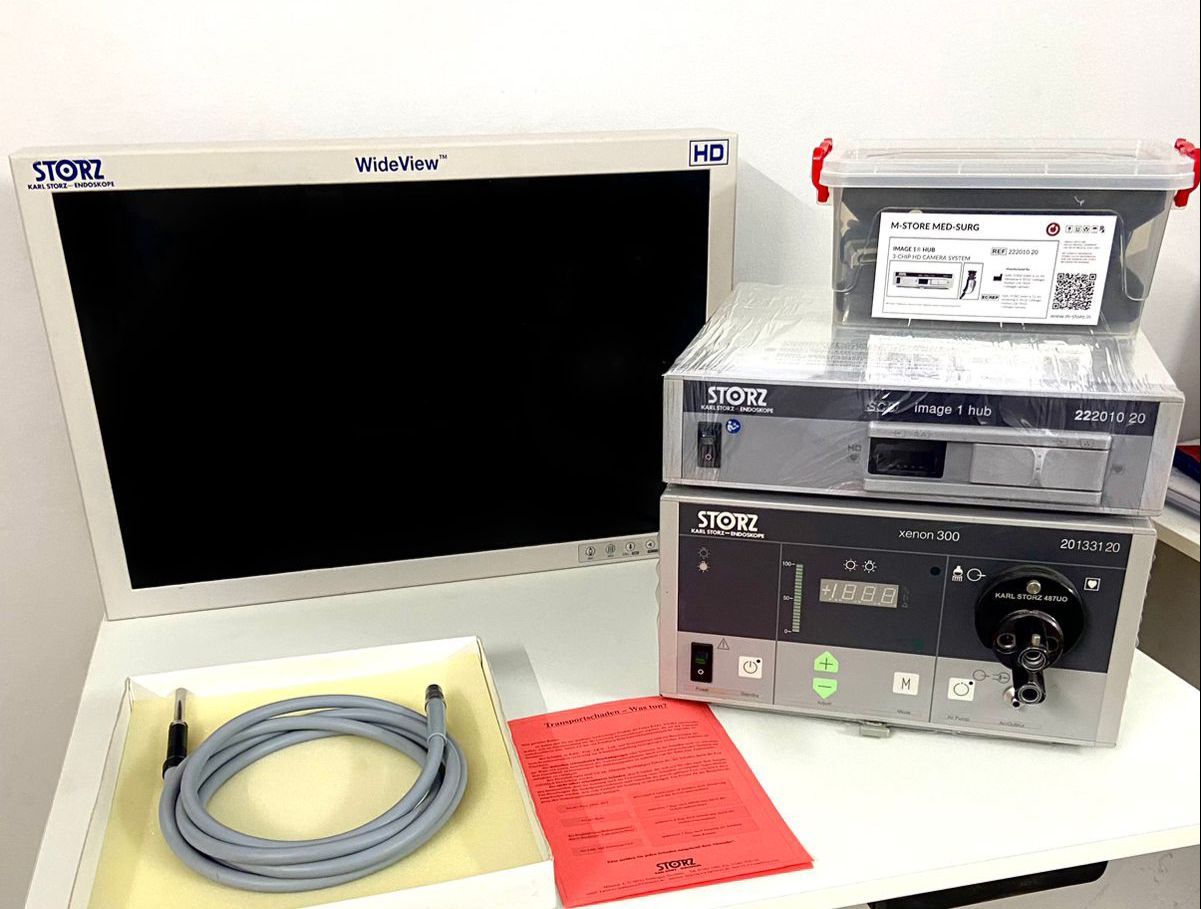

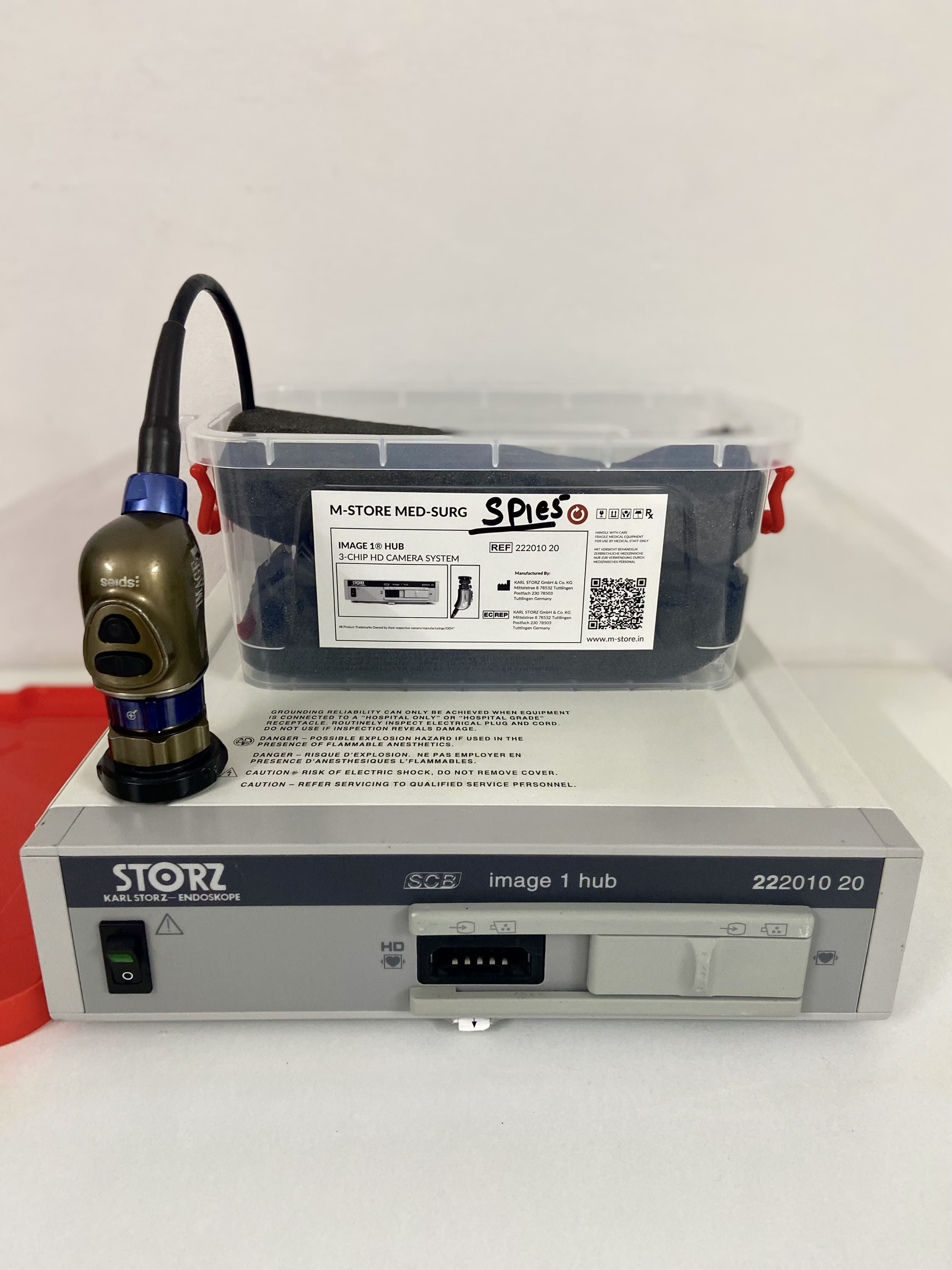

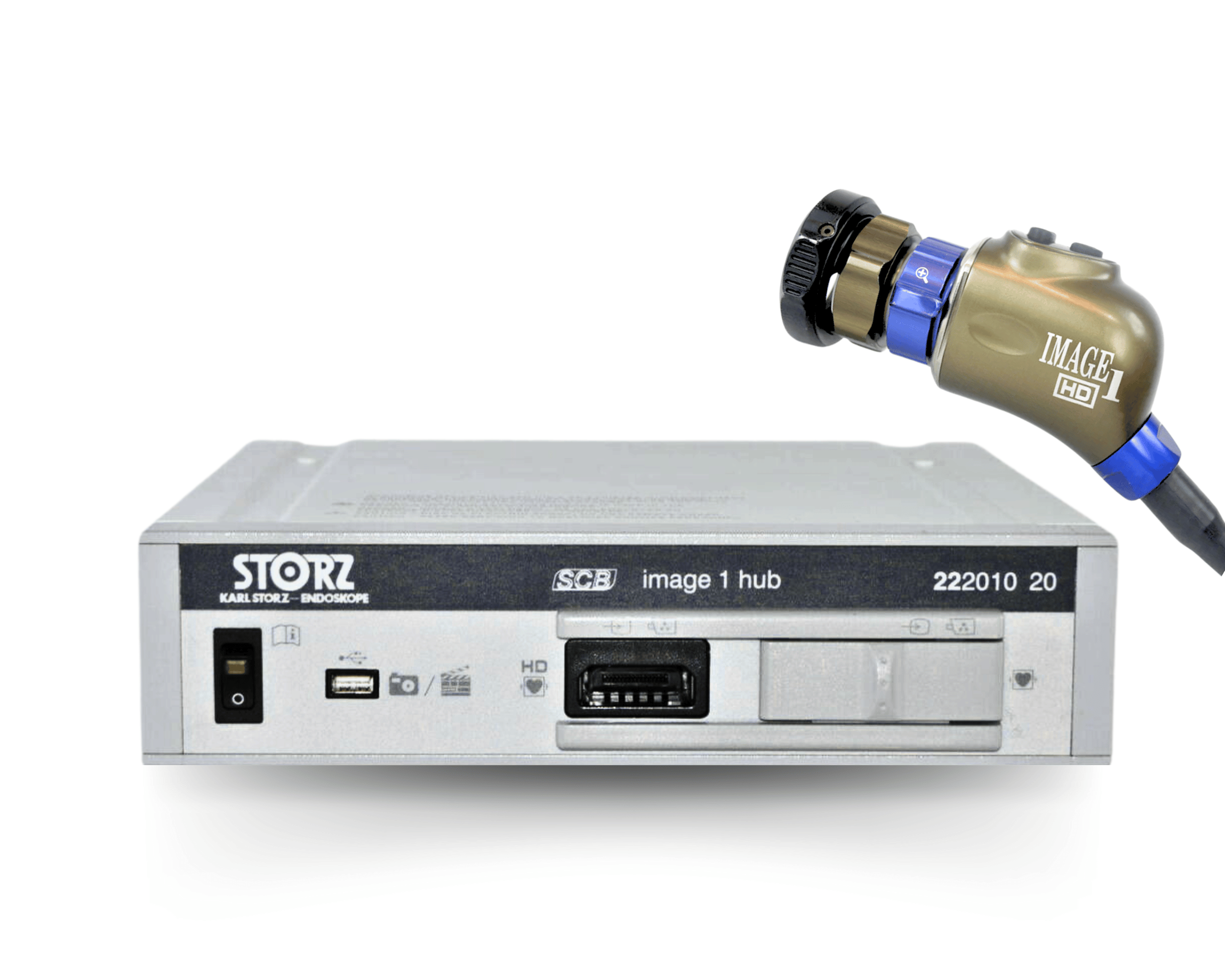

1x Camera Control Unit (CCU): Karl Storz Image 1 Hub™ HD (Ref: 222010 20) – The primary processing unit featuring SCB technology and HD outputs.

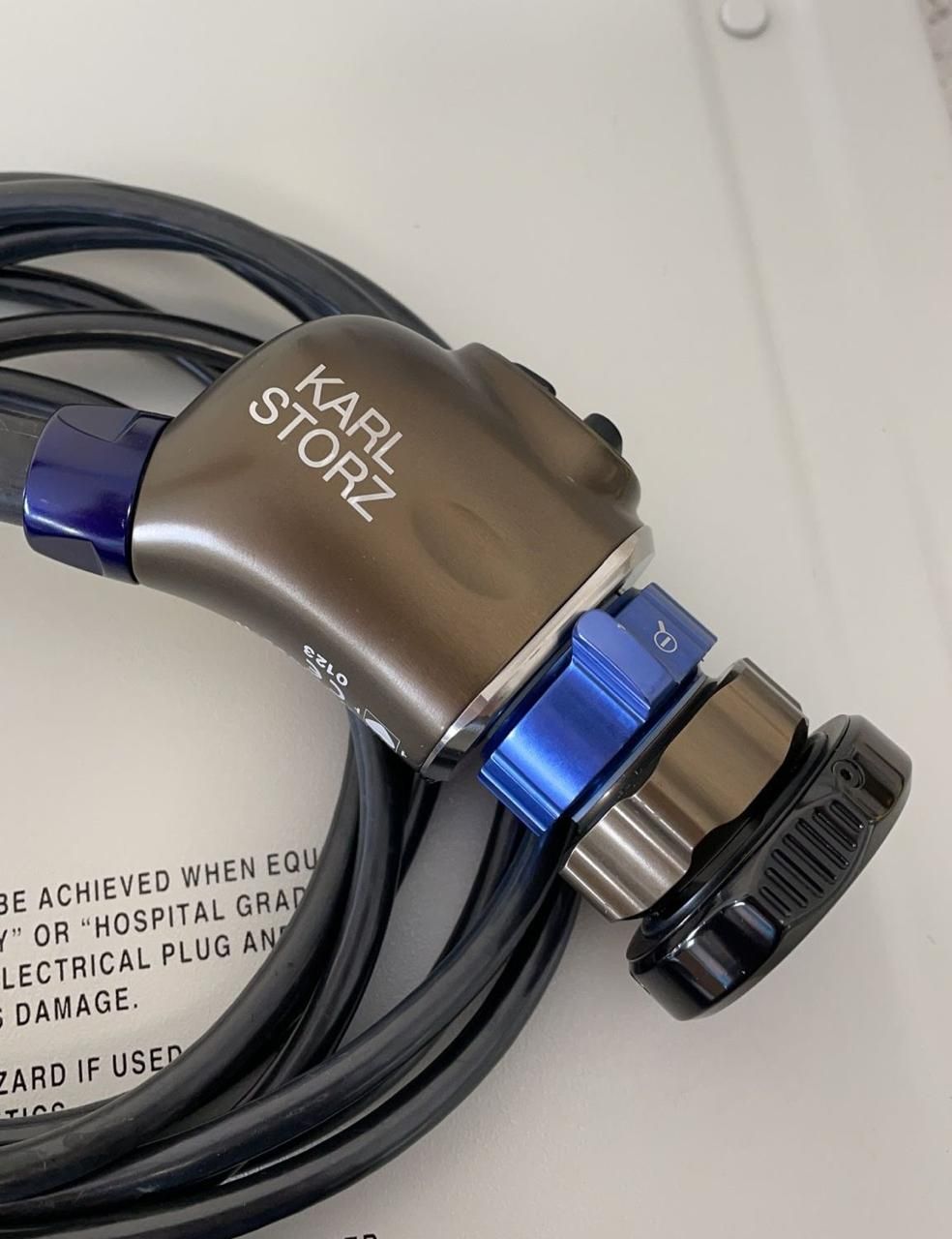

1x Camera Head: Karl Storz Image 1™ HD 3-Chip Camera Head featuring programmable buttons, focus ring, and parfocal zoom lens.

1x Medical Grade Monitor: Karl Storz 26" LED HD Monitor – High-definition surgical display for optimal visualization.

1x DVI Cable: Digital Video Interface cable for high-quality video signal transmission between the CCU and the monitor.

User Documentation: Original Karl Storz Instruction Manual and setup guides.

Protective Storage: M-Store Med-Surg specialized storage Case with foam padding for safe transport and organization.

Connectivity & Interface Specifications

Karl Storz Image 1 Hub HD (Model 222010 20) offers a comprehensive range of digital and analog outputs to ensure compatibility with both modern HD monitors and legacy recording devices.

High-Definition Digital Outputs:

• 2x DVI-D Outputs: Dual Digital Video Interface ports for connecting to high-resolution medical grade monitors like the included 26" WideView display.
• 2x SDI Outputs: Serial Digital Interface via BNC connectors, ideal for long-distance cable runs to secondary slave monitors or routing switchers.

Analog Video Outputs:

• 1x RGB Output: Standard 15-pin D-Sub connector for compatibility with older displays or printers.
• 2x S-Video Outputs: 4-pin Mini-DIN connectors for connecting to medical grade video recorders (DVRs) or legacy printers.

System Control & Integration:

• 2x SCB Ports: Karl Storz Communication Bus ports allow the CCU to communicate with and control other Storz devices (like the light source or insufflator) from the camera head buttons.
• 1x Keyboard Input: 6-pin Mini-DIN for connecting an external keyboard for patient data entry.
• 1x Serial Data Port: For external communication or firmware updates.

Recommended Accessories

To enhance the functionality of the Karl Storz Image 1 HUB HD Camera system, we recommend using compatible accessories such as:

Karl Storz LED 26" HD Medical Grade Monitor

Karl Storz LED Nova 150 Light Source

Karl Storz 30L Thermoflator Advanced CO2 Insufflator

These accessories ensure seamless integration and optimal performance during surgical procedures.

Frequently Asked Questions

Q: What specific inputs and outputs does the Karl Storz Image 1 Hub HD (Model 222010 20) offer for recording and external displays?

A: This specific unit is designed for maximum connectivity in modern operating rooms. It features Dual DVI-D outputs for high-definition digital monitors and Dual SDI (BNC) outputs for long-distance transmission to recording devices or secondary slave monitors. It also includes RGBS and S-Video for compatibility with legacy printers, along with two SCB ports for centralized control of compatible Storz devices.

Q: How does the H3-Z Camera Head with Parfocal Zoom improve laparoscopic visualization?

A: The H3-Z Camera Head included in this set features a premium Parfocal Zoom Lens. Unlike standard zoom lenses that require you to refocus every time you change magnification, the Parfocal lens maintains perfect sharpness as you zoom in and out. This is critical for surgeons who need to quickly switch between wide abdominal views and close-up tissue inspection without stopping to adjust the focus ring.

Q: Which light source is recommended for this system, and is it compatible with LED technology?

A: While the system works with standard Xenon sources, we highly recommend upgrading to the Karl Storz LED Nova 150 (Model 201612 20), available as an optional add-on. The Image 1 Hub HD is fully optimized for the LED Nova 150, which provides consistent 6000K daylight-quality illumination for over 30,000 hours, eliminating the need for frequent bulb changes common with older Xenon units.

Q: Can I integrate a digital insufflator like the Thermoflator with this camera system?

A: Yes. The Image 1 Hub HD features SCB (Storz Communication Bus) technology. When you add the optional Karl Storz Thermoflator (Model 264320 20), you can link it directly to the CCU. This allows the surgeon to monitor critical pressure and flow data directly on the surgical screen (On-Screen Display) and even adjust insufflator settings using the buttons on the camera head.

Q: Does the base package include a medical-grade monitor?

A: Yes. The standard package includes the Karl Storz 26" WideView LED Monitor (Medical Grade). This large-format display is calibrated for human tissue color accuracy, ensuring that the high-definition signal from the camera is displayed with maximum fidelity for the entire surgical team.
